This item is Discontinued.

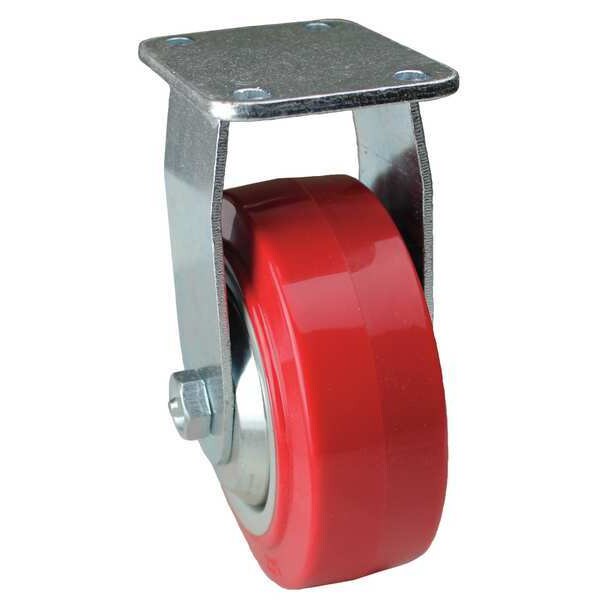

Zoro Select Rgd Plate Cstr, Polyurethane, 6 in, 700 lb. 08IX06201R002

Rgd Plate Cstr, Polyurethane, 6 in, 700 lb. (Discontinued)

  • Mfr # 08IX06201R002
  • Zoro # G4804791
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
08IX06201R002
Zoro #
G4804791
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2"
Plate Size
2-3/4" x 3-3/4"
Plate Thickness
97/500"
Caster Plate Size
2-3/4" x 3-3/4"
Caster Plate Thickness
13/64"

Details

Item
Plate Caster
Caster Brake Included
No
Caster Load Rating Range
Light-Medium Duty
Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Wheel Shape
Standard
Wheel/Tread Material
Polyurethane
Caster Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
700 lb
Wheel Bearing Type
Roller
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
C
Caster Product Group
Rigid Caster
Durometer
90 Shore A
Caster Min. Temp.
-40 Degrees F
Caster Wheel Bearings
Roller
Caster Core Material
Polyolefin
Caster Max. Temp.
180 Degrees F
Replacement Wheel
Mfr. No. XA0620112
Caster Temp. Range Available
Yes
Plate Caster Bolt Hole Pattern
C
Includes
Thread Guards
Thread Guards
Yes
Application
Dollies, Floor Trucks, Shop Carts, Tool Boxes, Warehouse Trucks
Caster Temp. Range
-40 Degrees to 180 Degrees F
Frame Finish
Zinc Chromate
Extended Lead
No
Frame Material
Steel
Caster Swivel Lock Type
No Lock Included
Wheel Color
Red
Wheel/Tread Hardness
90 Shore A
Wheel Core Material
Polyolefin
Swivel Lock Type
No Lock Included
Includes Thread Guards
Yes
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Firm
Mounting Plate Bolt Hole Pattern
B
Load Capacity - Maximum
700 lb
Compatible With
XA0620112

Description

Rigid, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
