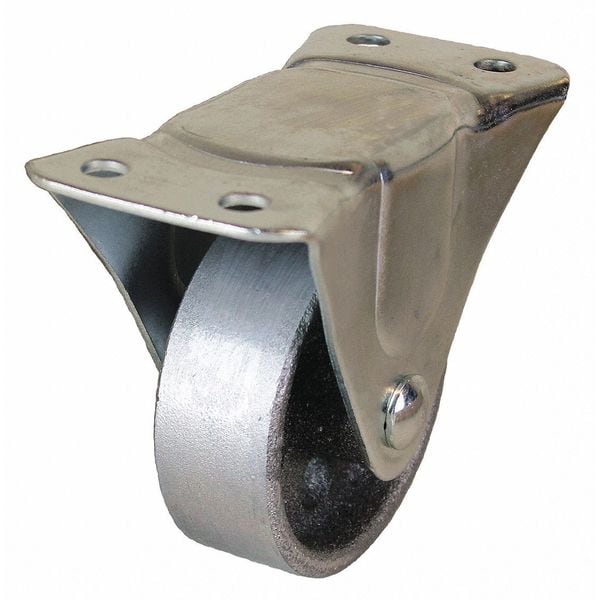

Zoro Select Rigid Plate Caster, 4 in Dia, 450lb, Silver P2R-C040G-P - main

Rigid Plate Caster, 4 in Dia, 450lb, Silver

  • Mfr # P2R-C040G-P

  • Zoro # G4806401

product price:  $17.25
/ea

Key Features

Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 5 in
Number of Wheels
1
Wheel Dia.
4 in
Application
Bakery Racks, Furniture Dollies, Laundry Carts
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P2R-C040G-P
Zoro #
G4806401
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Overall Height
5in
Mounting Bolt Dia.
3/8 in
Wheel Width
1 5/16 in
Mounting Plate Size
3-1/16in x 6-1/8in
Mounting Height
4 15/16 in
Overall Wheel Width
1 5/16 in
For Axle Dia.
5/16 in
Bolt Hole Spacing - Width
5 in
Bolt Hole Spacing - Length
1.75 in
Mounting Plate Length
3 1/16 in
Mounting Plate Thickness
1/8in

Details

Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 5 in
Number of Wheels
1
Application
Bakery Racks, Furniture Dollies, Laundry Carts
Core Color
Gray
Caster Sub-Type
Rigid
Caster Frame Material
Steel
Extended Lead
No
Load Rating
250 lb
Thread Guards
No
Standards
ANSI ICWM
Outside Bolt Hole Spacing
1-3/4 in x 5 in
Non-Marking
No
Includes
Complete Caster
Caster Temp. Range Available
Yes
Wheel Color
Silver
Caster Brake Included
No
Item
Rigid Caster
Caster Plate Hole Pattern
D
Tread Shape
Standard
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Wheel Core Material
Cast Iron
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Material
Cast Iron
Wheel Bearing Type
Plain
Load Rating Range
Light-Medium Duty
Wheel/Tread Color
Silver
Tread Color
Silver
Load Capacity
250 lb
Caster Mounting Type
Plate
Tread
Standard
Series
P2 Series
ESD Conductive
No
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
250 lb
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
145 BHN
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Wheel Core Type
Solid
Operating Temperature Range
Up to 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Rigid, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 5/16 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
