  11. Rigid Plate Caster, 5 in. Dia., 650 lb.

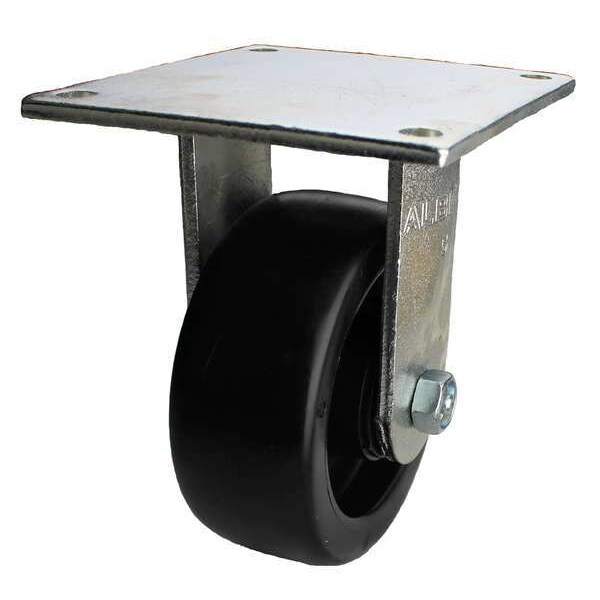

Zoro Select Rigid Plate Caster, 5 in. Dia., 650 lb. 12PB05201RG - main

Rigid Plate Caster, 5 in. Dia., 650 lb.

  • Mfr # 12PB05201RG

  • Zoro # G4547934

product price: $38.15
/ea

Key Features

Caster Brake Included
No
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12PB05201RG
Zoro #
G4547934
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
5 in x 5 1/2 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in

Details

Item
Plate Caster
Caster Brake Included
No
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
Load Rating
650 lb
Wheel Bearing Type
Roller
Wheel Hardness Rating
65 Shore D
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Plate Hole Pattern
D
Frame Finish
Zinc Plated
Wheel Color
Black
Replacement Wheel
Mfr. No. IB0520112G
Caster Temp. Range Available
Yes
Extended Lead
No
Thread Guards
No
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Wheel Core Material
Polyolefin
Load Capacity - Maximum
650 lb
Compatible With
IB0520112G
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
