Shop ZORO SELECT

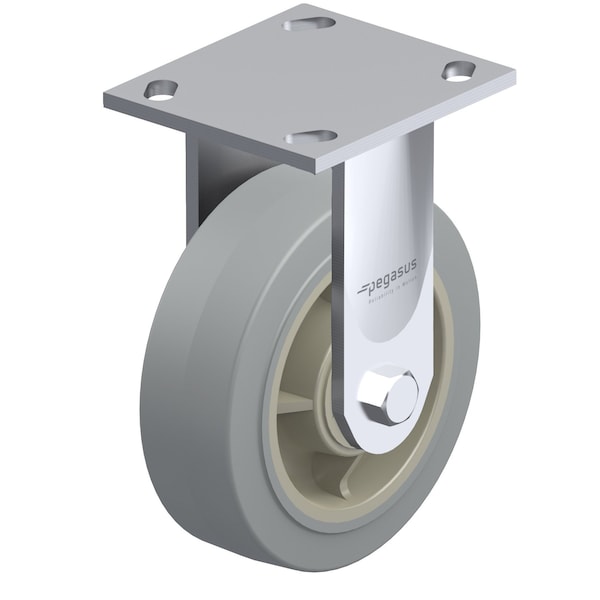

Rigid Plate Caster, TPR, 8 in., 675 lb.

  • Mfr # P21R-PRP080R-14

  • Zoro # G3301051

product price:
$
28.59
/ea

Key Features

Caster Brake Included
No
Wheel Width
2 in
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-PRP080R-14
Zoro #
G3301051
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Overall Height
9-1/2"
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
4 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
7/32 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in

Details

Caster Brake Included
No
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Non-Marking
Yes
Load Rating
600 lb
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
Extended Lead
No
Standards
ANSI ICWM
Wheel Color
Gray
Core Color
Gray
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Thread Guards
No
Replacement Wheel
Mfr. No. P-RP-080X020/050R
Number of Wheels
1
Item
Plate Caster
Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Sub-Type
Rigid
Caster Brake Type
No Brake
Wheel Core Material
Polyolefin
Includes Thread Guards
No
Wheel Bearing Type
Roller
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Caster Mounting Type
Plate
Tread Color
Gray
Load Capacity
600 lb
Tread
Standard
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
System of Measurement
Inch
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
65 Shore A
Compatible With
P-RP-080X020/050R
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Debris-Resistant
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
