  6. Rigid Plate Cstr, 800 lb, Stainless Steel

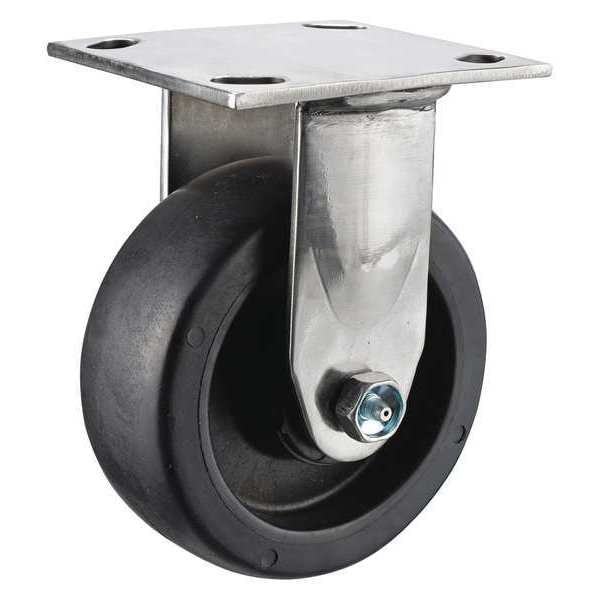

Zoro Select Rigid Plate Cstr, 800 lb, Stainless Steel P21RX-HNG040R-14-001 - main

Rigid Plate Cstr, 800 lb, Stainless Steel

  • Mfr # P21RX-HNG040R-14-001

  • Zoro # G3016282

product price:  $80.19
/ea
Free Shipping & Returns

Key Features

Replacement Wheel
Mfr. No. HE0420112G
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Black
Non-Marking
Yes
Overall Height
5-5/8in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P21RX-HNG040R-14-001
Zoro #
G3016282
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-5/8in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in

Details

Replacement Wheel
Mfr. No. HE0420112G
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Black
Non-Marking
Yes
Caster Frame Material
Stainless Steel
Load Rating
800 lb
Caster Sub-Type
Rigid
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Caster Brake Included
No
Number of Wheels
1
Frame Finish
Polished
Wheel Color
Black
Extended Lead
No
Item
Rigid Caster
Caster Temp. Range Available
Yes
Thread Guards
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Tread Shape
Standard
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Wheel Core Material
Glass Filled Nylon
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake
Wheel/Tread Material
Glass Filled Nylon
Wheel/Tread Color
Black
Load Capacity
880 lb
Standards
RoHS, ICWM, NSF
Tread
Standard
Tread Color
Black
Caster Mounting Type
Plate
Series
P21X Series
System of Measurement
Inch
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
85 shore D
Load Capacity - Maximum
800 lb
Compatible With
HE0420112G
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature - Maximum
550 Degrees F
Operating Temperature Range
Up to 550 Degrees F

Description

Rigid, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
