  11. Rigid Plate Cstr, Cast Iron, 2-1/2in, 200lb

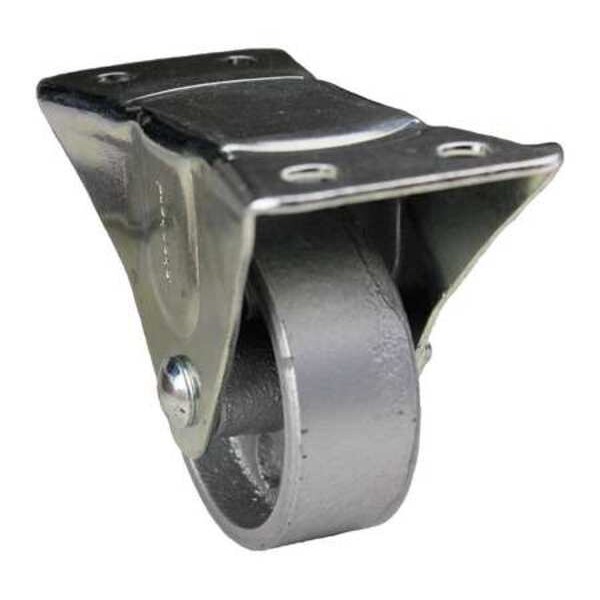

Zoro Select Rigid Plate Cstr, Cast Iron, 2-1/2in, 200lb P2R-C025G-P - main

Rigid Plate Cstr, Cast Iron, 2-1/2in, 200lb

  • Mfr # P2R-C025G-P

  • Zoro # G4566642

product price: $6.99
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Wheel Dia.
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2R-C025G-P
Zoro #
G4566642
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
2 1/2 in
Wheel Width
1 in
Mounting Height
3 1/4 in
Mounting Plate Size
2-1/8in x 4-3/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
3-1/4in
Bolt Hole Spacing - Length
1.063 in
For Axle Dia.
5/16 in
Bolt Hole Spacing - Width
3.5 in
Mounting Plate Length
2 13/16 in
Overall Wheel Width
1 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Load Rating
175 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Silver
Wheel Hardness Rating
145 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-1/16 in x 3-1/2 in
Inside Bolt Hole Spacing
1-1/16 in x 3-1/2 in
Caster Plate Hole Pattern
D
Application
Retail, Industrial, Commercial
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Thread Guards
No
Wheel Color
Silver
Includes
Complete Caster
Frame Finish
Zinc Plated
Extended Lead
No
Caster Brake Included
No
Includes Thread Guards
No
Load Rating Range
Light-Duty
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Tread
Standard
Tread Color
Silver
Load Capacity
175 lb
Series
P2 Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
175 lb
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Core Type
Solid
Operating Temperature Range
Up to 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Rigid, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 1/2 in, Wheel Width 1 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
