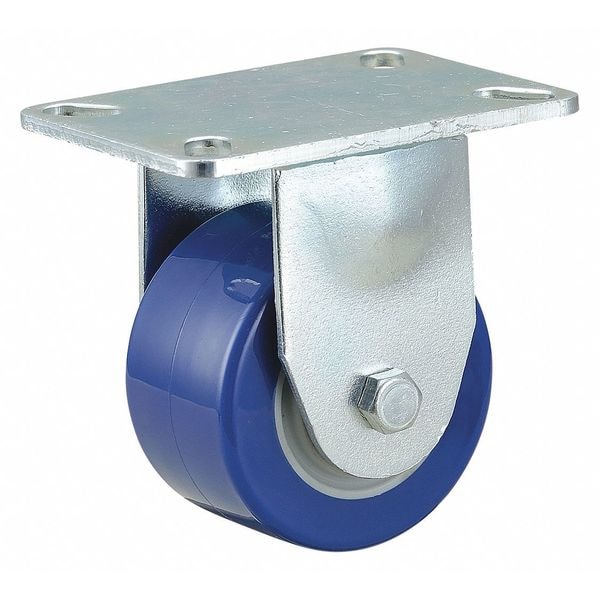

Rigid Plt Cstr, Polyurethane, 3 in, 450 lb.

product price: $10.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Sub-Type Rigid
  • Caster Load Rating Range Light-Medium Duty
  • Caster Product Group Rigid Caster
  • Caster Wheel Shape Standard
See all product information

Product Information

Dimensions

Wheel Dia. 3 in
Wheel Width 1 3/4 in
Overall Height 3-7/8"
Mounting Height 3 15/16 in
Mounting Plate Size 3 1/8 in x 4 1/8 in
Mounting Bolt Dia. 5/16 in
Plate Size 3-1/8" x 4-1/8"
Caster Plate Size 3-1/8" x 4-1/8"

Details

Item Low-Profile Standard Plate Caster
Caster Brake Included No
Caster Sub-Type Rigid
Caster Load Rating Range Light-Medium Duty
Caster Product Group Rigid Caster
Caster Wheel Shape Standard
Load Rating 450 lb
Caster Wheel/Tread Material Polyurethane
Wheel/Tread Material Polyurethane
Wheel/Tread Hardness Rating Firm
Wheel Bearing Type Precision Ball
Mounting Plate Bolt Hole Pattern A
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Outside Bolt Hole Spacing 2-3/8 in x 3-3/8 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Plastic
Core Color Gray
Application Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Standards ICWM
Extended Lead No
Plate Thickness 149/1000"
Plate Caster Bolt Hole Pattern A
Caster Core Material Polyolefin
Thread Guards No
Caster Min. Temp. -40 Degrees F
Wheel Color Blue
Caster Plate Hole Pattern A
Caster Temp. Range Available Yes
Frame Material Steel
Caster Plate Thickness 9/64"
Caster Temp. Range -40 Degrees to 180 Degrees F
Caster Wheel Bearings Ball
Caster Max. Temp. 180 Degrees F
Durometer 55 Shore D
Caster Swivel Lock Type No Lock Included
Tread Shape Standard
Load Rating Range 300 to 999 lb
Includes Thread Guards No
Swivel Construction Kingpinless
Wheel/Tread Hardness 95 Shore A
Wheel/Tread Color Blue

Description

Rigid, Low-Profile Standard Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 3/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
