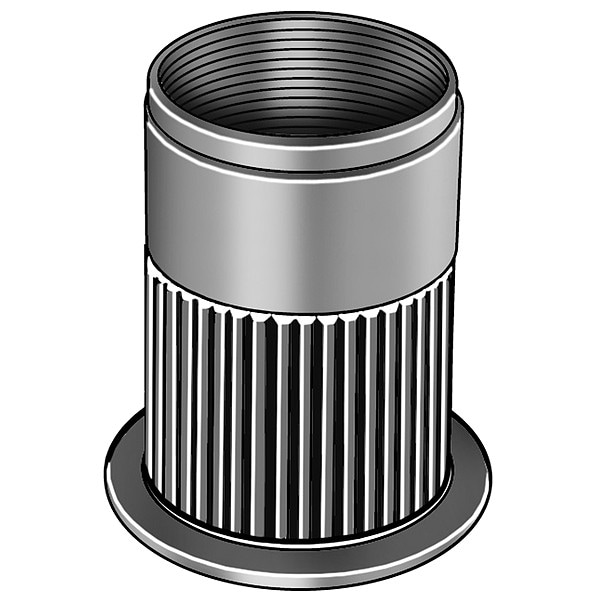

Rivet Nut, 1/4"-20 Thread Size, 0.5 in Flange Dia., 0.669 in L, Aluminum, 40 PK
Mfr # U69315.025.0260
Zoro # G1263105
CAD Available
product price:Â $16.45
/pk 40, $0.41/eaKey Features
CAD Drawing
Flange Style
Flanged
Thread Size
1/4"-20
Drill Bit Size
25/64"
Material
Aluminum
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
U69315.025.0260
Zoro #
G1263105
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
1/4"-20
Drill Bit Size
25/64"
Flange Diameter
0.5 in
Insert Diameter
0.39 in
Overall Length
0.669 in
Hole Size
0.391 in
Head Height
0.028 in
Maximum Hole Diameter
0.391 in
Maximum Material Thickness
0.26 in
Flange Thickness
0.028 in
Body Length
43/64 in
Minimum Material Thickness
0.165 in
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 25/64 in, Overall Length 43/64 in, Thread Size 1/4 In.-20, Thread Type Coarse, Flange Diameter 0.5 in, Flange Thickness 0.028 in, Material Aluminum, Finish Plain, Compatible Material Fiberglass, Metal, Plastic, Drill Bit Size 25/64 in, Maximum Hole Diameter 0.391 in, Minimum Material Thickness 0.165 in, Maximum Material Thickness 0.26 in, Insert Nut Type Rivet Nut, Body Length 43/64 in, End Type Open, Package Quantity 40
