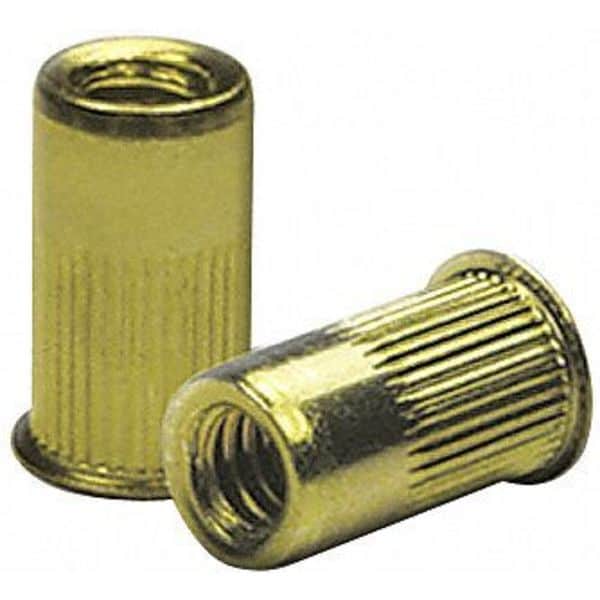

Rivet Nut, #8-32 Thread Size, 0.31 in Flange Dia., 0.42 in L, Steel, 100 PK
- Mfr # CAK2-0832-080-100
- Zoro # G2804159
CAD Available
product price:Â
$
15.19
/pk of 100, $0.15/ea
Key Features
CAD Drawing
Body Texture
Knurled
Flange Style
Flanged
Drill Bit Size
17/64 in
Material
Steel
Finish
Zinc Yellow
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CAK2-0832-080-100
- Zoro #
- G2804159
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- CAD Available
- Yes
- Item
- Rivet Nut
- Body Texture
- Knurled
- Flange Style
- Flanged
- Material
- Steel
- Finish
- Zinc Yellow
- Grip Range
- 0.020 in to 0.080 in
- System of Measurement
- Inch
- End Type
- Open
- Application
- Used to Securely Fasten Metals
- Thread Type
- Coarse
- Compatible Material
- Metal
- Body Type
- Round
- Material Grade/Class
- C1010
- Thread Fit
- 2B
- Insert Nut Type
- Rivet Nut
- Shell Material
- Steel
- Resistance Properties
- Twist-Resistant
- Traction Material
- Steel
Dimensions
- Thread Size
- #8-32
- Drill Bit Size
- 17/64 in
- Flange Diameter
- 0.31 in
- Insert Diameter
- 17/64 in
- Overall Length
- 0.42 in
- Hole Size
- 0.266 in
- Head Height
- 0.019 in
- Maximum Material Thickness
- 0.08 in
- Minimum Material Thickness
- 0.02 in
- Installed Length
- 5/16 in
- Flange Thickness
- 0.019 in
- Body Length
- 27/64 in
- Maximum Hole Diameter
- 0.266 in
- Wire Rope Length
- 7/16 in
- Length
- 7/16 in
- Hole Diameter - Maximum
- 0.266 in
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 17/64 in, Overall Length 7/16 in, Installed Length 5/16 in, Thread Size #8-32, Thread Type Coarse, Flange Diameter 0.313 in, Flange Thickness 0.019 in, Material Steel, Material Grade/Class C1010, Finish Zinc Yellow, Body Texture Knurled, Compatible Material Metal, Drill Bit Size 17/64 in, Maximum Hole Diameter 0.266 in, Minimum Material Thickness 0.02 in, Maximum Material Thickness 0.08 in, Insert Nut Type Rivet Nut, Body Type Round
