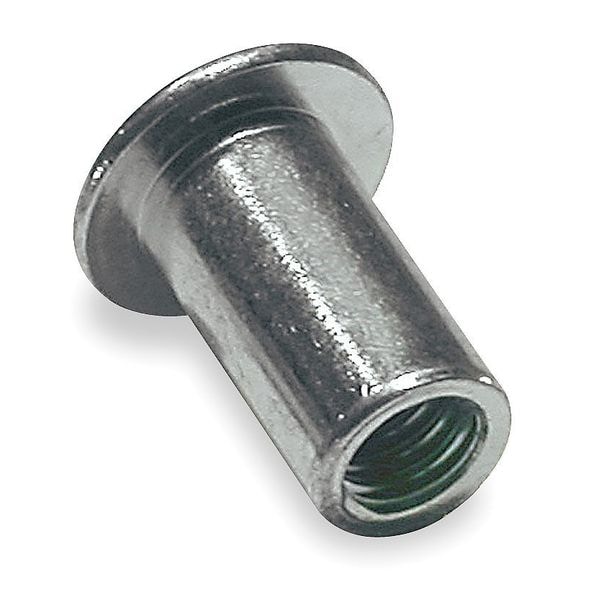

Rivet Nut, #8-32 Thread Size, 0.357 in Flange Dia., 0.5 in L, Steel, 50 PK
Mfr # U69136.016.0120
Zoro # G2790681
CAD Available
product price: $16.55
/pk 50, $0.33/eaKey Features
CAD Drawing
Flange Style
Flanged
Thread Size
#8-32
Drill Bit Size
#2
Material
Steel
Finish
Zinc Plated
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U69136.016.0120
Zoro #
G2790681
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
#8-32
Drill Bit Size
#2
Flange Diameter
0.357 in
Insert Diameter
0.221 in
Overall Length
0.5 in
Hole Size
0.221 in
Head Height
0.032 in
Minimum Material Thickness
0.075 in
Maximum Material Thickness
0.12 in
Flange Thickness
0.032 in
Maximum Hole Diameter
0.221 in
Details
CAD Available
Yes
Item
Rivet Nut
Flange Style
Flanged
Material
Steel
Finish
Zinc Plated
Grip Range
0.075 in to 0.120 in
System of Measurement
Inch
End Type
Open
Application
Used To Securely Fasten Metals, Fiberglass Or Rigid Plastic Materials By Creating Permanent Threads, Ideal For Materials Considered Too Thin For Tapered Threads
Compatible Material
Fiberglass, Metal, Plastic
Thread Type
Coarse
Insert Nut Type
Rivet Nut
Pack Size
Small Pack
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 7/32 in, Overall Length 1/2 in, Thread Size #8-32, Thread Type Coarse, Flange Diameter 0.357 in, Flange Thickness 0.032 in, Material Steel, Finish Zinc-Plated, Compatible Material Fiberglass, Metal, Plastic, Drill Bit Size #2, Maximum Hole Diameter 0.221 in, Minimum Material Thickness 0.075 in, Maximum Material Thickness 0.12 in, Insert Nut Type Rivet Nut, End Type Open, Flange Style Flanged, Package Quantity 50
