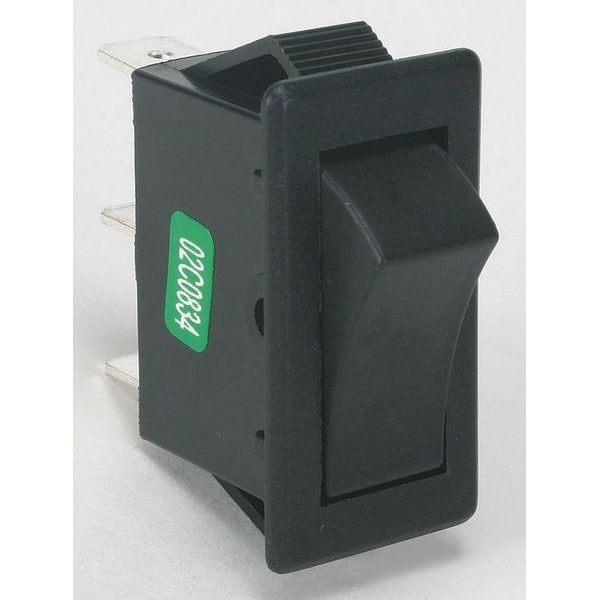

Rocker Switch, SPDT, 3 Connections

Mfr # 2LNA1
Zoro # G2288501

Key Features

Contact Form

SPDT

Number of Connections

Switch Function

On/Off/On

Terminals

0.250 in Quick Connect Tab

Mounting Hole

0.540 in x 1.140 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2LNA1
Zoro #: G2288501
UPC #: 190735592731
Country of Origin: China

Dimensions

Overall Height: 0.19 in
Mounting Hole Width: 0.54 in
Overall Width: 1.28 in
Mounting Hole Length: 1.14 in
Overall Depth: 0.67 in
Manufacturer Warranty Length: 2 yr

Details

Item: Rocker Switch
Contact Form: SPDT
Number of Connections: 3
Switch Function: On/Off/On
Terminals: 0.250 in Quick Connect Tab
Mounting Hole: 0.540 in x 1.140 in
AC Contact Rating: 12 A @ 250 V, 16 A @ 125 V
Body Color: Black
Standards: cRUus
Switch Color: Black
Operating Temp. Range: 32 Degrees to 104 Degrees F
Product Type: Rocker Switch
IP Rating: IP20
Operating Temperature - Minimum: 32 Degrees F
Series: HY35
Includes Lamp Module: No Lamp Module Included
Operating Temperature - Maximum: 185 Degrees F
Switch Function Configuration: On/Off/On
Includes Lens: No Lens Included
Operator Illumination: Non-Illuminated
Terminal Connection Type: Quick-Connect Tab Terminals
Lamp Module Type: No Lamp Module Included
Lamp Type: No Lamp Module Included
Number of Positions: 3

Description

Rocker Switch, Contact Form SPDT, Number of Connections 3, Switch Function On/Off/On, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.540 in x 1.140 in, AC Contact Rating 12 A @ 250 V, 16 A @ 125 V, DC Contact Rating Not Applicable, HP -, Body Color Black, Switch Color Black, Operating Temp. Range 32 Degrees to 104 Degrees F, Standards cRUus, IP Rating IP20
