  13. Round Indicator Light, Green, 12VDC, Size: 16mm Mounting dia
Shop All Indicator Lights
Zoro Select

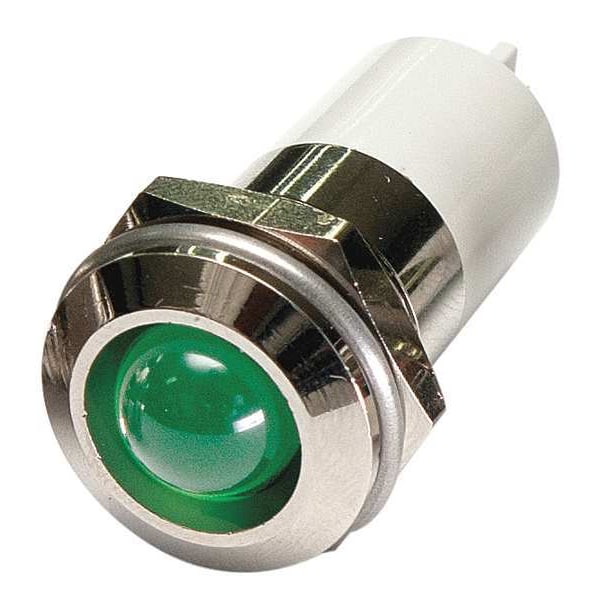

Round Indicator Light, Green, 12VDC, Size: 16mm Mounting dia

original price: $6.83
15% off
new price: $5.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 12V DC
  • Color Green
  • Material of Construction Brass Plated Chrome, LED, Plastic (ABS)
  • Lamp Type LED
  • Shape Round
See all product information

Product Information

Dimensions

Size 16mm Mounting dia
Overall Height 0.72 in
Manufacturer Warranty Length 3 yr
Stem Thread Size M16
Overall Width 0.72 in
Panel Cutout Diameter 16 mm
Overall Depth 1.5 in

Details

Item Raised Panel Light
Voltage 12V DC
Color Green
Material of Construction Brass Plated Chrome, LED, Plastic (ABS)
Lamp Type LED
Shape Round
Electrical Connection 0.11 Male Quick Disconnect
Standards cRUus, RoHS
Average Life 100,000 hr
Panel Thickness Up to 0.160 in
Current Drawn 20 mA
IP Rating IP40
Body Material ABS/Brass Plated Chrome
Includes Lens Lens Included
Voltage Rating - Maximum 12 V DC
Series M16
Head Style Raised
Lens Color Green
NEMA Enclosure Rating No Enclosure
Includes Lamp Module Lamp Module Included
Lamp Color Green

Description

Raised Panel Light, LED, Brass Plated Chrome, LED, Plastic (ABS), Green, Voltage 12V DC, Size 16mm Mounting dia, Electrical Connection 0.11 Male Quick Disconnect, Shape Round, Current Drawn 20 mA, Average Life 100,000 hr, IP Rating IP40, Panel Thickness Up to 0.160 in, Standards cRUus, RoHS
