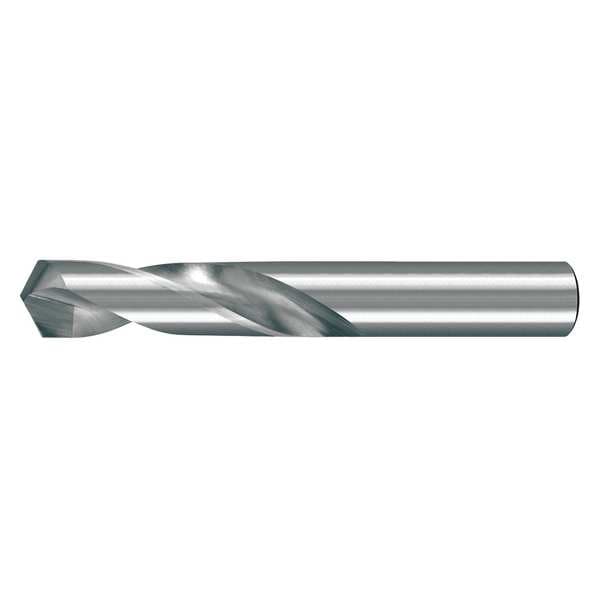

Screw Machine Drill Bit, U Size, 118 Degrees Point Angle, Carbide-Tipped, Uncoated Finish
- Mfr # 11003680
- Zoro # G0506269
product price:Â
$
29.19
/ea
Key Features
Drill Bit Size
U
Overall Length
3 1/8 in
Flute Length
1 13/16 in
Number of Flutes
2
Material - Machining
Carbide Tipped
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 11003680
- Zoro #
- G0506269
- UPC #
- -
- Country of Origin
- United States
- Item
- Screw Machine Drill Bit
- Number of Flutes
- 2
- Material - Machining
- Carbide Tipped
- Finish - Machining
- Bright (Uncoated)
- Drill Bit Point Angle
- 118 Degrees
- Cutting Direction
- Right Hand
- Drill Bit Grouping
- Drill Bit
- Grade
- General Purpose
- Decimal Equivalent
- 0.3680
- Standards
- Not Rated
- Flute Type
- Spiral
- Drill Bit Point Type
- Cam Relieved Point
- Primary Material Application ISO Code
- H, K, N
- Measurement System
- Letter
- Material Grade - Machining
- General Purpose
- Shank Type - Machining
- Straight
- Spiral Direction
- Right Hand
- Primary Material Application
- All Materials
Dimensions
- Drill Bit Size
- U
- Overall Length
- 3 1/8 in
- Flute Length
- 1 13/16 in
- Depth:Dia. Ratio
- 4xD
- Sizes Included
- U
- Shank Dia.
- 9.35 mm
- Shank Length
- 1 5/16 in
- Drill Point Length
- 2.80 mm
- Maximum Drilling Depth
- 1 13/16 in
- Drill Diameter Tolerance
- +0.0000 in/-0.0010 in
- Drill Length Class
- Screw-Machine Length
- Wire Rope Length
- 3 1/8 in
- Length
- 3 1/8 in
Description
Screw Machine Drill Bit, Drill Bit Size U, Drill Bit Point Angle 118 Degrees , Cam Relieved Point, Carbide Tipped, Bright (Uncoated), Cutting Direction Right Hand, Decimal Equivalent 0.3680
