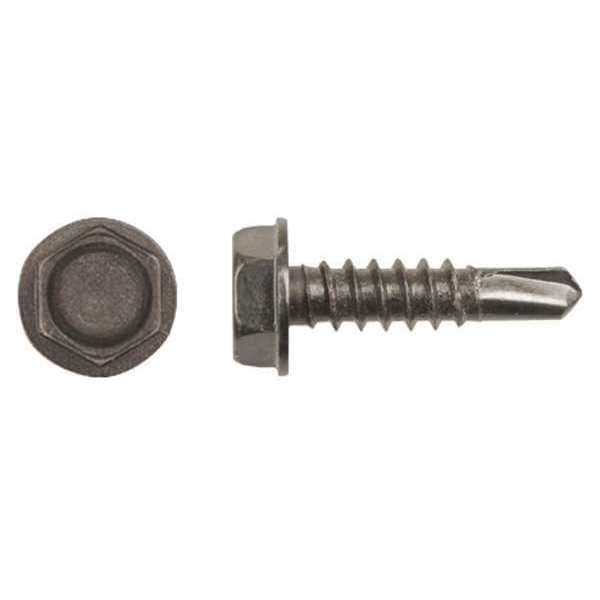

Self-Drilling Screw, #10 x 3/4 in, Phosphate Steel Flange Hex Head External Hex Drive, 50 PK

  • Mfr # 12223PK
  • Zoro # G5103542
CAD Available

product price:
$
9.15
/pk of 50, $0.18/ea

Key Features

Flange Hex Head
External Hex Drive
Drilling Tip
CAD Drawing
Screw Size
#10
System of Measurement
Inch
Fastener Length
3/4 in
Drive Size
5/16 in
Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12223PK
Zoro #
G5103542
UPC #
841213041097
Country of Origin
Taiwan, Province of China
CAD Available
Yes
System of Measurement
Inch
Head Type
Flange Hex
Drive
External Hex
Tip Type
Drilling
Material
Steel
Finish
Phosphate
Collated
Non-Collated
Thread Style
Fully Threaded
Item
Self-Drilling Screw
Head Color
Black
Application
Sheet Metal
Thread Type
Coarse
Type
Self-Drilling Screw
Pack Size
Small
Shell Material
Steel
Traction Material
Steel

Dimensions

Screw Size
#10
Fastener Length
3/4 in
Drive Size
5/16 in
Head Dia.
3/8 in
Head Height
0.188 in
Drill Point Size
3
Hex Width
0.3125 in
Maximum Drilling Thickness
0.188 in
Overall Length
3/4 in
Head Width
0.313 in
Maximum Head Height
3/16 in
Maximum Head Width
5/16 in
Washer Outside Diameter
0.313 in
Drill Tip Length
1/4 in
Wire Rope Length
3/4 in
Length
3/4 in

Description

The ZORO SELECT - 12223PK is a self-drilling screw, intended for use in materials, potentially eliminating the need for pre-drilled holes. Made from steel, these screws are commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly. They are intended to offer a potential reduction in labor time and effort when compared to traditional screw types.

  • Application: Intended primarily for sheet metal applications, aiming at joining together various materials up to a specified gauge.
  • CAD Available: A Computer-Aided Design (CAD) file is available for accurate integration into digital project plans.
  • Collated: Non-Collated – each screw is individual rather than held together in a strip or coil.
  • Drive & Size: Requires an external hex tool with a drive size of 5/16 inch for installation or removal.
  • Fastener Length: The total length of the screw is 3/4 inch which may influence its penetration depth and material securing capability.
  • Finish & Head Color: Phosphate finish aims at enhancing durability and corrosion resistance while providing black color appearance
  • Head Type & Dimensions: Flange Hex head type with diameter of 3/8 inch ensures proper load distribution in industrial or commercial applications
  • Screw Size & Thread Style: #10 size with fully threaded style runs along the entire length of the screw that may contribute towards secure fastening
