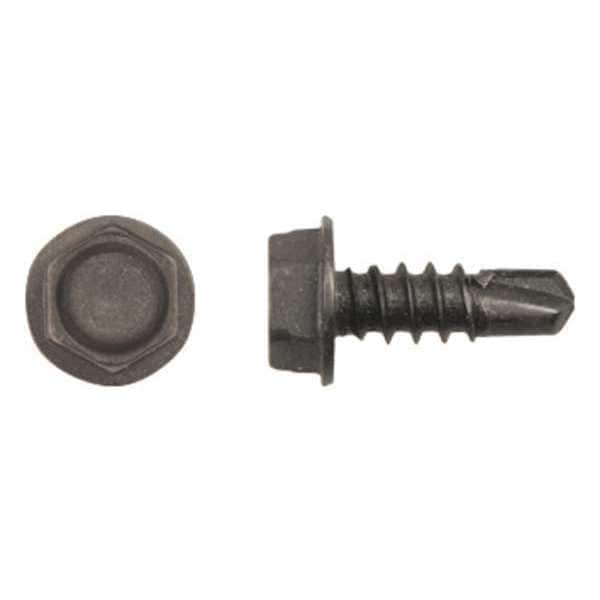

Self-Drilling Screw, #8 x 1/2 in, Phosphate Steel Flange Hex Head External Hex Drive, 100 PK

  • Mfr # 12215PK
  • Zoro # G5129677
CAD Available

product price:
$
10.79
/pk of 100, $0.11/ea

Key Features

Flange Hex Head
External Hex Drive
Drilling Tip
CAD Drawing
Screw Size
#8
System of Measurement
Inch
Drive Size
1/4 in
Material
Steel
Finish
Phosphate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12215PK
Zoro #
G5129677
UPC #
841213041059
Country of Origin
Taiwan, Province of China
CAD Available
Yes
System of Measurement
Inch
Head Type
Flange Hex
Drive
External Hex
Tip Type
Drilling
Material
Steel
Finish
Phosphate
Collated
Non-Collated
Thread Style
Fully Threaded
Item
Self-Drilling Screw
Head Color
Black
Application
Sheet Metal
Thread Type
Coarse
Pack Size
Small
Type
Self-Drilling Screw
Shell Material
Steel
Traction Material
Steel

Dimensions

Screw Size
#8
Fastener Length
1/2 in
Drive Size
1/4 in
Drill Point Size
2
Head Height
0.188 in
Head Dia.
3/8 in
Hex Width
0.25 in
Maximum Drilling Thickness
0.156 in
Washer Outside Diameter
0.375 in
Drill Tip Length
1/4 in
Maximum Head Width
1/4 in
Head Width
0.25 in
Maximum Head Height
3/16 in
Overall Length
1/2 in
Wire Rope Length
1/2 in
Length
1/2 in

Description

The ZORO SELECT - 12215PK is a Self-Drilling Screw intended for use in sheet metal applications. This type of fastener comes with a drill point at the end, enabling it to be inserted into materials without the need for pre-drilled holes. It's commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly where secure fastening with reduced labor time is essential.

  • Material: Made from steel which determines its strength, corrosion resistance, and usefulness in certain industrial contexts.
  • CAD Available: A Computer-Aided Design (CAD) file is provided, which may assist industry professionals with incorporating the screw's dimensions into their digital project plans.
  • Drive Type & Size: The External Hex drive is compatible with a particular tool fitting (1/4 inch), which can facilitate the installation or removal of this self-drilling screw.
  • Fastener Length: With its 1/2-inch length, this fastener's potential penetration depth and material securing capability are determined.
  • Finish: The phosphate finish could potentially enhance durability and corrosion resistance while possibly offering functional benefits such as improved grip or lessened friction during installation.
  • Screw Size & Thread Style: #8 size with fully threaded style means that threads extend along the whole length of the screw, which might aid secure fastening in some industrial settings
  • Maximum Drilling Thickness: Has been tested to penetrate up to 0.156 inches thickness under ideal conditions without the need for a pre-drilled hole
