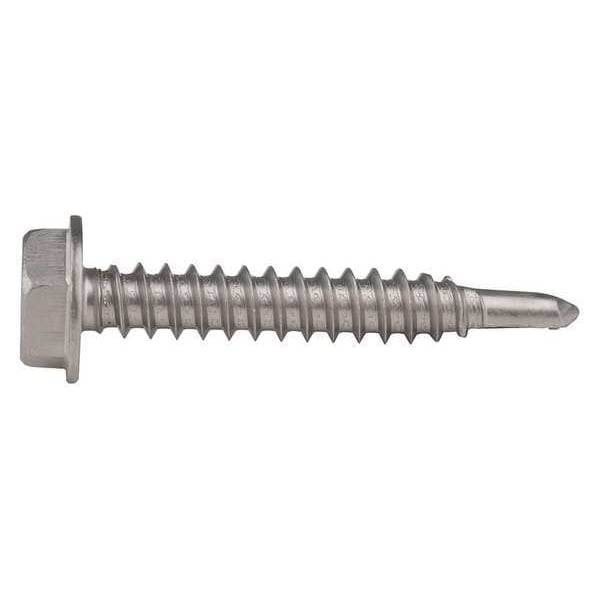

Self Drilling Screw, N10-16, 1 1/4 in L, 410 Stainless Steel, Plain, Hex Washer, External Hex, 50PK
Mfr # U31860.019.0125
Zoro # G2582946
CAD Available
product price:Â $6.59
/pk 50, $0.13/eaKey Features
Flange Hex Head
External Hex Drive
Drilling Tip
CAD Drawing
Screw Size
#10
System of Measurement
Inch
Drive Size
5/16 in
Material
Stainless Steel
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U31860.019.0125
Zoro #
G2582946
UPC #
-
Country of Origin
Multiple
Dimensions
Screw Size
#10
Fastener Length
1-1/4 in
Drive Size
5/16 in
Head Height
0.12 in
Drill Point Length
0.235 in
Drill Point Size
2
Hex Width
0.305 in
Head Dia.
0.120 in to 0.105 in
Minimum Head Width
5/16 in
Head Width
0.312 in
Maximum Drilling Thickness
0.063 in
Overall Length
1 1/4 in
Washer Outside Diameter
0.414 in
Maximum Head Height
1/8 in
Drill Tip Length
1/4 in
Minimum Head Height
7/64 in
Maximum Head Width
5/16 in
Description
Self-Drilling Screw, Finish Plain, Material Stainless Steel, Head Type Hex Washer, Drive External Hex, Screw Size #10, Fastener Length 1 1/4 in, Drill Point Size 2, Drill Tip Length 1/4 in, Maximum Drilling Thickness 0.063 in, Head Width 0.312 in, Head Height 0.12 in, Washer Outside Diameter 0.414 in, Drive Size 5/16 in, Pack Size Small, System of Measurement Inch, Maximum Head Width 5/16 in, Minimum Head Width 5/16 in, Maximum Head Height 1/8 in, Minimum Head Height 7/64 in
