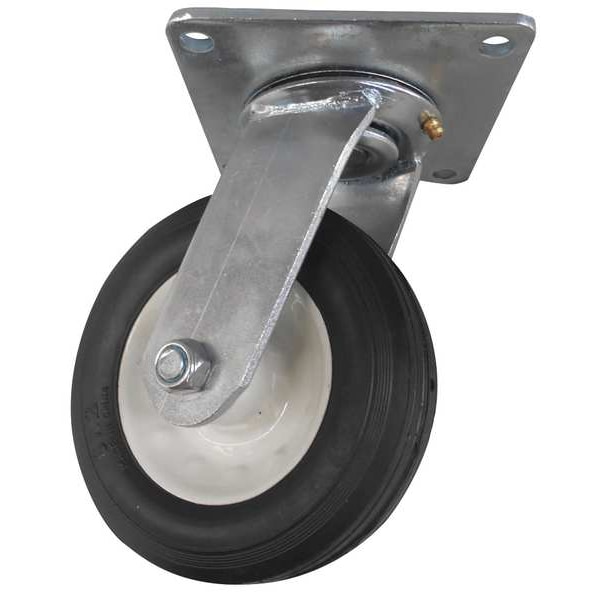

Semi-Pneumatic Caster, Light-Duty, Ribbed

Mfr # 404L09
Zoro # G5566528

50.39

Key Features

Hub Type

Symmetrical

Caster Temp. Range Available

Yes

Hub Color

White

Hub Width

2-1/2"

Number of Wheels

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 404L09
Zoro #: G5566528
UPC #: -
Country of Origin: China

Dimensions

Hub Width: 2-1/2"
Wheel Dia.: 6 1/4 in
Mounting Bolt Dia.: 3/8 in
Tire Thickness: 1 in
Wheel Width: 1 7/8 in
Tire Rim Dia.: 3 13/16 in
Overall Height: 7-1/2"
Mounting Height: 7 3/8 in
Mounting Plate Size: 5 in x 5-1/2 in
Mounting Plate Thickness: 1/4in

Details

Hub Type: Symmetrical
Item: Plate Caster
Caster Temp. Range Available: Yes
Caster Sub-Type: Swivel
Hub Color: White
Number of Wheels: 1
Caster Mounting Type: Plate
Frame Finish: Zinc Plated
Tread: Ribbed
Hub Material: Steel
Non-Marking: No
Outside Bolt Hole Spacing: 4-1/8 in x 4-1/2 in
Tread Color: Black
Inside Bolt Hole Spacing: 4-1/8 in x 4-1/2 in
Load Rating: 200 lb
Caster Plate Hole Pattern: D
Caster Brake Type: No Brake
Operating Temperature Range: -15 Degrees to 160 Degrees F
Number of Mounting Holes: 4
Wheel/Tread Hardness Rating: Soft
Includes Thread Guards: Yes
Load Rating Range: 0 to 299 lb
Caster Frame Material: Steel
Swivel Raceway Type: Double Ball
Swivel Construction: Kingpin
Wheel Bearing Type: Ball
Wheel/Tread Material: Rubber
Tread Shape: Ribbed
Load Capacity - Maximum: 200 lb

Description

Swivel, Plate Caster, Load Rating 200 lb, Wheel Dia. 6 1/4 in, Wheel Width 1 7/8 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Ribbed
