Shop ZORO SELECT

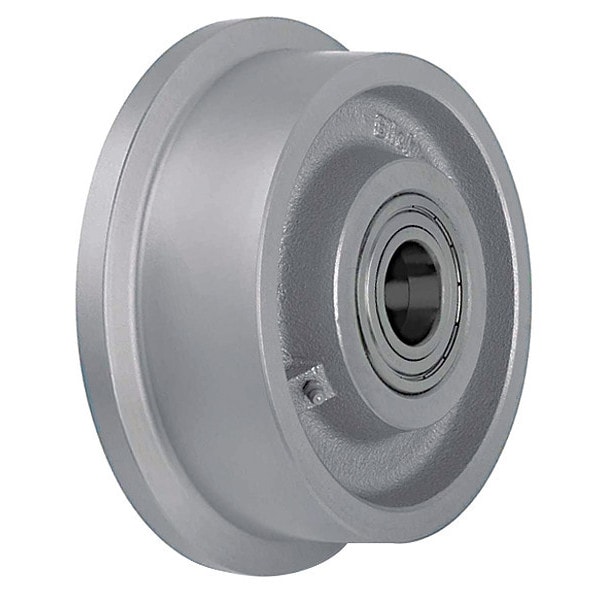

Single Flange Track Wheel, 3" Wheel Dia., 1540 lb Load Rating, Cast Iron

  • Mfr # SPK 75k
  • Zoro # G6628610
product price:
$
37.49
/ea

Key Features

Wheel Dia.
3 in
Wheel Width
1 5/8 in
Caster Load Rating Range
Heavy Duty
Load Rating
1540 lb
Caster Wheel/Tread Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SPK 75k
Zoro #
G6628610
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Wheel Width
1 5/8 in
Fits Axle Dia.
20 mm
Hub Length
1 7/8 in
Bore Dia.
25/32"
For Axle Size
13/16 in
Groove Width
3/8 in
Fits Chest Size
Ergonomic Rolling Wheel

Details

Caster Load Rating Range
Heavy Duty
Load Rating
1540 lb
Caster Wheel/Tread Material
Cast Iron
Caster Core Material
Cast Iron
Caster Wheel Bearings
Precision Ball
Wheel Color
Silver
Spanner Bushing
Included
Non-Marking
Yes
Durometer
180-220 BHN
Standards
DIN EN 12532, ICWM
Features
Ergonomic Rolling Wheel
Replacement For
Blickle BH, BO Series
Core Color
Silver
ESD Conductive
No
Caster Temp. Range Available
Yes
Caster Temp. Range
-150 Degrees To 1110 Degrees F
Caster Wheel Shape
Single Flange
System of Measurement
Inch
Item
Track Wheel
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Single Flange
Operating Temperature Range
Up to 800 Degrees F
Wheel Core Material
Iron
includes Spanner Bushing
Not Included
Wheel/Tread Hardness
180-220 HB
Wheel/Tread Hardness Rating
Extra Hard
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Iron
Includes Spanner Bushing
No
Extended Lead
No
Caster Product Group
Wheels
Replacement Wheel
Mfr. No. SPK 75k
Number of Wheels
1
Operating Temperature - Maximum
800 Degrees F
Compatible with Series
BH Series, BO Series
Load Capacity - Maximum
1,540 lb
Wheel Hardness Rating
180 HB
Compatible Series
BH Series, BO Series

Description

Track Wheel, 1540 lb Load Rating, 1000 to 2999 lb, 3 in Wheel Dia., 1 5/8 in Wheel Width, Iron Wheel/Tread Material, Extra Hard Wheel/Tread Hardness Rating, 190-230 BHN Wheel/Tread Hardness, Precision Ball Wheel Bearing Type, Single Flange Tread Shape, For Axle Size 13/16 in, 3/8 in Groove Width, No Includes Spanner Bushing, Iron Wheel Core Material, Yes Non-Marking, 1 7/8 in Hub Length
