CAD Viewer & Download Files

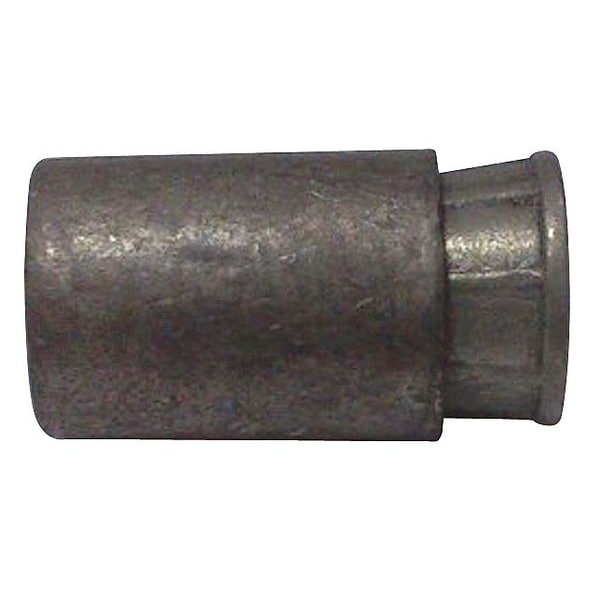

Single Lag Shield, Alloy Steel, 25 PK
Mfr # U63428.037.0001
Zoro # G4263987
CAD Available
product price: $47.39
/pk 25, $1.90/eaKey Features
CAD Drawing
Compatible Material
Concrete
Overall Length
1-1/4"
Material
Alloy Steel
Finish
Plain
Drill Bit Size
3/4"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U63428.037.0001
Zoro #
G4263987
UPC #
190735734407
Country of Origin
Multiple
Dimensions
Anchor Diameter
3/4"
Overall Length
1-1/4"
Drill Bit Size
3/4"
Minimum Hole Depth
1-1/4"
Thread Size
3/8"-16
Screw Size
3/8 in
Screw Length
1-1/4"
Anchor Screw Thread Dia.
3/8"-16
Bolt or Rod Size
3/8 in
Minimum Installation Depth
1 1/4 in
Thread Depth
1.25 in
Description
Caulking Anchor, Anchor Diameter 3/4 in, Overall Length 1 1/4 in, Screw Size 3/8 in, Thread Size 3/8 In., Thread Depth 1.25 in, Thread Type Coarse, Material Zamac Alloy, Finish Plain, Drill Bit Size 3/4 in, Minimum Installation Depth 1 1/4 in, Ultimate Shear Strength (4,000 psi Concrete) 2,400 lb, Maximum Ultimate Shear Strength 2,400 lb, Ultimate Tension Strength (4,000 psi Concrete) 2,500 lb, Maximum Ultimate Tension Strength 2,500 lb, System of Measurement Inch
