  13. Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20 A at 480 V AC Contact Rating

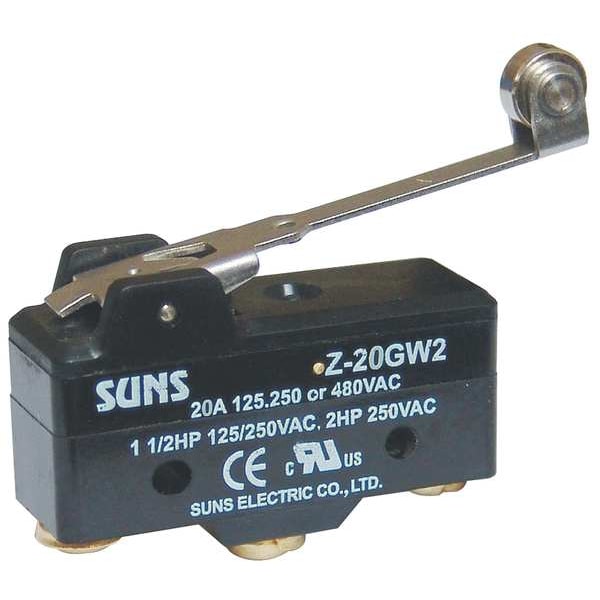

Zoro Select Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20 A at 480 V AC Contact Rating 5JEF2 - main

Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # 5JEF2

  • Zoro # G2245537

product price: $11.39
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
2.02 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JEF2
Zoro #
G2245537
UPC #
190735527856
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
2.02 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Length
1.94"
Depth
0.69"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
2.02"
Actuator Length
1.91"
Mounting Dimension
1.00" Centers
Body Width
1.94 in
Overall Width
1.94 in
Roller Width
4 mm
Lever Actuator Length
1.91 in
Manufacturer Warranty Length
1 yr
Body Depth
0.69 in
Body Height
2.02 in
Overall Depth
0.69 in
Mounting Hole Diameter
1/8 in
Roller Diameter
9 mm
Overall Height
2.02 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Contact Form- Switches
SPDT
Current Rating
20A
Voltage Rating
125/250/480VAC
Operating Temp. Range
-13 Degrees to 185 Degrees F
Differential Travel
0.06 in
Watertight - Snap Action Switch
No
Over Travel
0.06 in
Max. Pretravel
0.469 in
Contact Form
SPDT
Housing Material
Phenolic Case and Cover
Type of Actuator
Hinge Roller Lever
Terminal Type
Screw
Standards
cRUus Component Recognized, CE
Electrical Connection - Snap Action Switch
Screw
Operating Force
3.53 oz
Series
Microswitch
Release Force
0.5 ozf
DC Contact Rating
0.25 A @ 250 V
AC Contact Rating
20 A @ 480 V
Operating Temperature - Minimum
-13 Degrees F
Overtravel
0.06 in
Body Material
Phenolic
Actuator Style
Hinge Roller Lever
Operating Force - Maximum
0.97 N
Roller Material
Stainless Steel
Center Mounting Hole Distance
1 in
Operating Temperature - Maximum
185 Degrees F
Electrical Connection
Screw
Roller Position
Offset
Pretravel
0.47 in
Resistance Properties
Non-Magnetic
Roller Adjustability
Fixed
Differential Travel - Maximum
2.16 mm

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 20 A @ 480 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.91 in, Height - Snap Action Switch 2.02 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Microswitch
