  13. Snap Action Switch, Pin, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

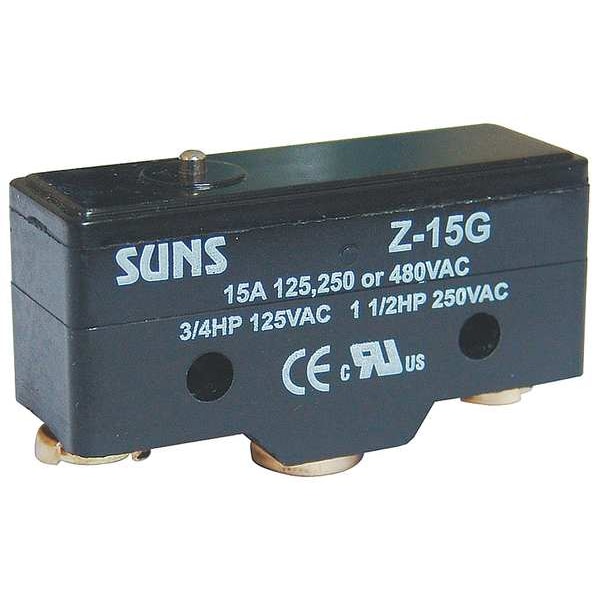

Zoro Select Snap Action Switch, Pin, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating 5JED4 - main

Snap Action Switch, Pin, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # 5JED4

  • Zoro # G1986047

product price: $6.69
/ea

Key Features

Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JED4
Zoro #
G1986047
UPC #
190735527672
Country of Origin
China

Dimensions

Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Mounting Dimension - Snap Action Switch
1.00 in Centers
Actuator Length
1.94"
Length
1.94"
Mounting Dimension
1.00" Centers
Height
0.95"
Overall Depth
0.69 in
Body Width
1.94 in
Overall Height
0.95 in
Body Height
0.95 in
Manufacturer Warranty Length
1 yr
Mounting Hole Diameter
3/16 in
Body Depth
0.69 in
Overall Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
Contact Form- Switches
SPDT
Voltage Rating
125/250/480VAC
Over Travel
0.005 in
Differential Travel
0.002 in
Operating Temp. Range
-13 Degrees to 185 Degrees F
Type of Actuator
Pin Plunger
Terminal Type
Screw
Release Force
4.02 ozf
Watertight - Snap Action Switch
No
Operating Force
12.34 oz
Current Rating
15a
Max. Pretravel
0.016 in
Contact Form
SPDT
Electrical Connection - Snap Action Switch
Screw
Housing Material
Phenolic Case and Cover
Series
Microswitch
Standards
cRUus Component Recognized, CE
AC Contact Rating
15 A @ 480 V
DC Contact Rating
0.5A @ 250 V
Actuator Style
Pin Plunger
Pretravel
0.016 in
Operating Force - Maximum
3.43 N
Electrical Connection
Screw
Body Material
Phenolic
Resistance Properties
Non-Magnetic
Operating Temperature - Maximum
185 Degrees F
Differential Travel - Maximum
0.05 mm
Operating Temperature - Minimum
-13 Degrees F
Center Mounting Hole Distance
1 in
Overtravel
0.005 in

Description

Snap Action Switch, Pin, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Microswitch
