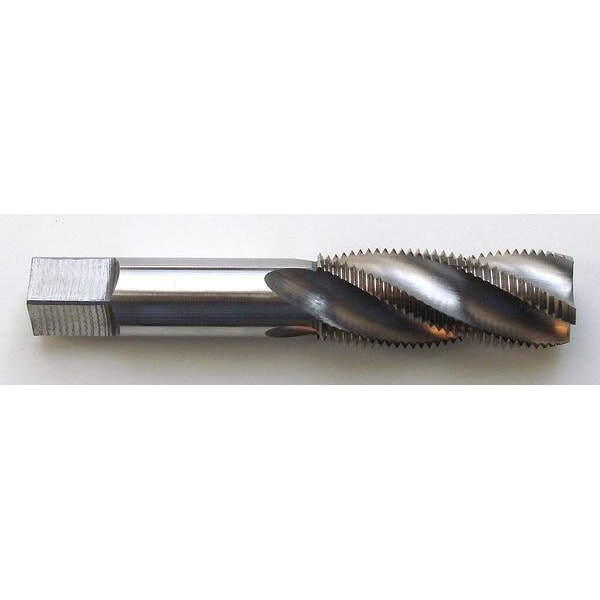

Spiral Flute Tap Bottoming, 2 Flutes
- Mfr # 20074
- Zoro # G6883475
product price:Â
$
39.29
/ea
Key Features
Overall Length
1 15/16 in
Tap Style
Spiral Flute
Tap Size
M3
Shank Dia.
3.58mm
Tap Dimension Type
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 20074
- Zoro #
- G6883475
- UPC #
- -
- Country of Origin
- United States
- Item
- Spiral Flute Tap
- Tap Style
- Spiral Flute
- Tap Chamfer
- Bottoming
- Tap Material
- High Speed Steel
- Number of Flutes
- 2
- Measurement System
- Metric
- Standards
- ANSI
- Tap Finish
- Bright (Uncoated)
- Tap Grouping
- Tap
- Thread Direction
- Right Hand
- Tap Thread Type
- Metric Coarse
- Cutting Direction - Machining
- Right Hand
- Spiral Direction
- Right Hand
- Series
- Common Special
- Thread Limit
- D3
- Thread Standard
- Metric
- Shank Type - Machining
- Straight
- Thread Pitch
- 0.50mm
- Tap Shank Standard
- ANSI
- List Number
- Common Specials
- Number of Pieces
- 1
- Primary Material Application ISO Code
- H, K, N, P
- Primary Material Application
- Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Steel, Tool and Die Steel
- Shank Type
- Straight
Dimensions
- Overall Length
- 1 15/16 in
- Tap Size
- M3
- Shank Dia.
- 3.58mm
- Tap Dimension Type
- Metric
- Thread Length
- 5/8 in
- Tap Thread Size
- M3-0.50
- Drill Bit Size
- 2.50mm
- 65% Thread Drill Size
- #38
- Square Size
- 0.1100 in
- 75% Thread Drill Size
- 2.50mm
- Thread Size
- M3x0.5
- Shank Length
- 1 9/32 in
- 55% Thread Drill Size
- #37
- Size
- M3
- Pitch Diameter Limit
- D3
- Square Width
- 0.11 in
- Shank Diameter
- 9/64 in
- Square Length
- 0.11 in
- Wire Rope Length
- 1 15/16 in
- Length
- 1 15/16 in
Description
Spiral Flute Tap, Thread Size M3x0.5, Metric, Overall Length 1 15/16 in, High Speed Steel, Bright (Uncoated), Thread Length 5/8 in, 75 Percent Thread Drill Size 2.50mm, Thread Limit D3, Thread Direction Right Hand, Number of Flutes 2
