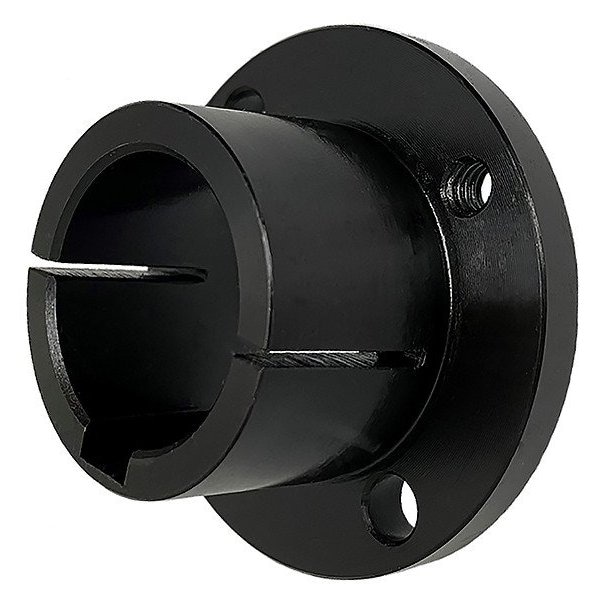

Split Taper Bushing, 1/4" Flange W
Mfr # Hx1
Zoro # G814642479
product price: $12.49
/eaKey Features
Bore Bushing Series
H
Length
1.25 in
Material
Steel
Includes
(2) Cap Screws
Flange Type
Solid
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Hx1
Zoro #
G814642479
UPC #
00195057297999
Country of Origin
China
Dimensions
Length
1.25 in
Bushing Diameter
1.625 in
Length Less Flange
1 in
Barrel Diameter
1.57 in
Flange Width
1/4 in
Bolt Circle Diameter
2 in
Bore Diameter
1 in
Overall Diameter
2.5 in
Keyway Width
1/4 in
Keyway Height
1/8 in
Details
Bore Bushing Series
H
Item
Split Taper Bushing
Material
Steel
Includes
(2) Cap Screws
Flange Type
Solid
Taper
3/4 in Per ft
Bushing Type
Split Taper
System of Measurement
Inch
Fastener Tightening Torque Capacity
95 lb-in
For Shaft Type
Keyed
Description
Split Taper Bushing, Bushing Type Split Taper, Bore Bushing Series H, Bore Diameter 1 in, Length 1.25 in, Bolt Circle Diameter 2 in, Bolt Size Not Applicable, System of Measurement Inch, Bushing Diameter 1.625 in, Fastener Tightening Torque Capacity 95 lb-in, Flange Type Solid, Flange Width 1/4 in, For Shaft Type Keyed, Includes (2) Cap Screws, Keyway Height 1/8 in, Keyway Width 1/4 in, Length Less Flange 1 in, Material Steel, Overall Diameter 2.5 in, Taper 3/4 in Per ft
