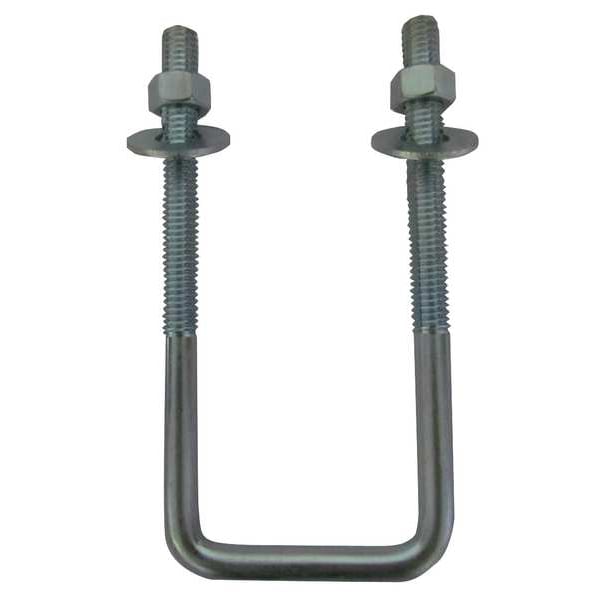

Square U-Bolt, 3/8"-16, 6 in W, 7 in H, Zinc Plated Steel
Mfr # U17263.037.0607
Zoro # G2978936
CAD Available
product price: $5.39
/eaKey Features
CAD Drawing
System of Measurement
Inch
Thread Size
3/8"-16
Inside Height
7 in
Inside Width/Diameter
6 in
For Pipe Size
9 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U17263.037.0607
Zoro #
G2978936
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
3/8"-16
Inside Height
7 in
Inside Width/Diameter
6 in
For Pipe Size
9 in
Thread Length
3 3/4 in
Width Across Centers of Tips
6-3/8 in
Overall Length
6"
Width (In.)
6 in
Inside Width
6 in
Length (In.)
6 in
Inside Length
7 in
Pipe Size (In.)
9
Description
Square U-Bolt, Square U-Bolt, Steel, Finish Zinc-Plated, Thread Size 3/8 In.-16, Thread Length 3 3/4 in, Inside Length 7 in, Length (In.) 6 in, Inside Width 6 in, Characteristics for Steel or Wrought Iron Pipe Sizes, UNC Thread, Includes 2 Nuts, 2 Washers
