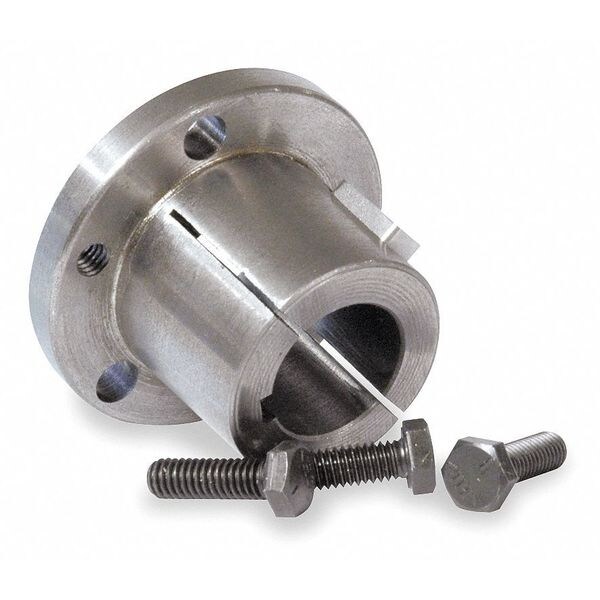

ST Bushing, B, 2 1/4 in B Dia, 1.938 in L
Mfr # 2L260
Zoro # G3721068
product price: $10.59
/eaKey Features
Item - Tapered and QD Bushings
Split Taper Bushing
Bore Bushing Series
B
Bore Dia.
2 1/4 in
Length
1.938 in
Dimension L
1 15/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2L260
Zoro #
G3721068
UPC #
-
Country of Origin
Mexico
Dimensions
Bore Dia.
2 1/4 in
Length
1.938 in
Dimension L
1 15/16 in
Dimension V
3 1/8 in
Dimension D Large End
2.625 in
Dimension T
1 7/16 in
Dimension U
1/2 in
Dimension D Small End
2.5567 in
Bolt Circle Dia.
3.6875 in
Bolt Circle Diameter
3.69 in
Bore Diameter
2 1/4 in
Bushing Diameter
2.625 in
Overall Diameter
3.688 in
Flange Width
1/2 in
Barrel Diameter
2.557 in
Length Less Flange
1.438 in
Keyway Width
1/2 in
Keyway Height
1/4 in
Description
Split Taper Bushing, Bushing Type Split Taper, Bore Bushing Series B, Bore Diameter 2 1/4 in, Length 1.938 in, Bolt Circle Diameter 3.69 in, Bolt Size Not Applicable, System of Measurement Inch, Bushing Diameter 2.625 in, Fastener Tightening Torque Capacity 192 in-lb, Flange Type Solid, Flange Width 1/2 in, For Shaft Type Keyed, Includes (3) Cap Screws, Keyway Height 1/4 in, Keyway Width 1/2 in, Length Less Flange 1.438 in, Material Steel, Overall Diameter 3.688 in, SAE Grade -
