Zoro Select

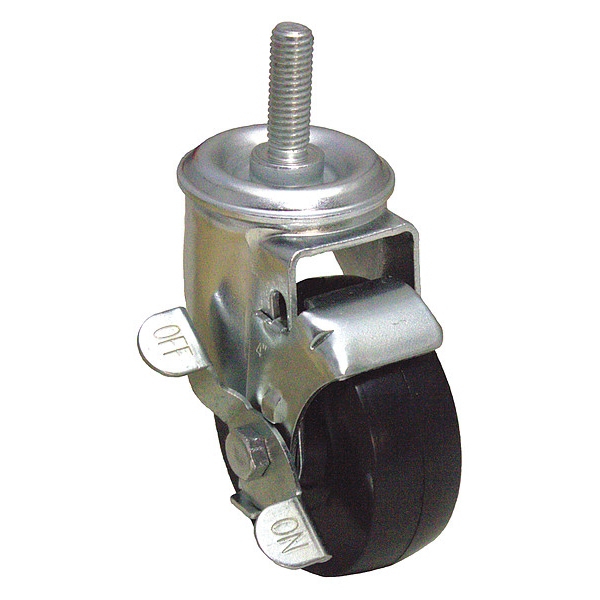

Stem Caster, 1/2" Stem Dia., 300 lb. Ld

Zoro Select Stem Caster, 1/2" Stem Dia., 300 lb. Ld P12S-R030D-ST1-WB
Tap to zoom
Hover or click to zoom
$9.67

Must order in multiples of 2

  • Item: Swivel Stem Caster With Brake
  • Caster Stem Type: Threaded Stem
  • Tread Shape: Standard
See full product details
Orders over $75 ship free.
Total: $19.34

Zoro Select #P12S-R030D-ST1-WB Specifications

  • Item: Swivel Stem Caster With Brake
  • Caster Stem Type: Threaded Stem
  • Tread Shape: Standard
  • Wheel Width: 1-1/4 in
  • Mounting Height: 4 1/8 in
  • Load Rating: 175 lb
  • Load Rating Range: -
  • Wheel/Tread Material: Rubber
  • Application: Retail, Industrial, Commercial
  • Stem Length: 1-1/2 in
  • Thread Size: 1/2"-13
  • Non-Marking: No
  • Caster Brake Type: Side Pedal Brake
  • Caster Frame Material: Steel
  • Wheel Bearing Type: Delrin
  • Number of Wheels: 1
  • Caster Product Group: Swivel Caster With Brake
  • Overall Height: 4-1/8 in
  • Caster Core Material: Rubber
  • Caster Raceway: Double Ball
  • Frame Finish: Zinc Plated
  • Caster Sub-Type: Swivel
  • Caster Temp. Range: -20 Degrees To 125 Degrees F
  • Caster Wheel Bearings: Delrin
  • Standards: RoHS, ICWM, NSF
  • Core Color: Black
  • Caster Thread Size: 1/2"-13
  • Caster Brake Included: Yes
  • Caster Temp. Range Available: Yes
  • Caster Wheel Shape: Standard
  • Caster Swivel Lock Type: No Lock Included
  • Caster Wheel/Tread Material: Solid Rubber
  • Stem Dia.: 1/2 in
  • Wheel Dia.: 3 in
  • Features: Noiseless Stem
  • Caster Load Rating Range: Light Duty
  • Wheel Color: Black
  • Replacement Wheel: Mfr. No. P-R-030x013/038D
  • Includes: Strap Type Brake
  • Operating Temperature Range: -40 Degrees to 180 Degrees F
  • Swivel Raceway Type: Double Ball
  • Wheel Core Material: Hard Rubber
  • Swivel Lock Type: No Lock Included
  • Caster Stem Size: 1/2"-13 x 1-1/2 in
  • Wheel/Tread Color: Black
  • Caster Break Type: Strap Type Brake
  • Caster Mounting Type: Threaded Stem
  • Includes Thread Guards: No
  • Load Capacity: 125 lb
  • Series: P12 Series
  • Swivel Radius: 2-13/16 in
  • Wheel/Tread Hardness: 70-85 Shore A
  • Extended Lead: No
  • Tread Color: Black
  • Resistant To: Chemical Resistance To Many Aggressive Substances, Except Oils
  • System of Measurement: Inch
  • Tread: Standard
  • ESD Conductive: No
  • Country of Origin (subject to change): China

Description

General Purpose Threaded Stem Caster, Swivel Caster with Brake, 175 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 4 1/8 in Mounting Height, Delrin, 1/2 In.-13 x 1 1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
