  11. Stem Caster, 120 lb. Load, Gray Wheel
Zoro Select Stem Caster, 120 lb. Load, Gray Wheel P5S-UP030G-SG1 - main

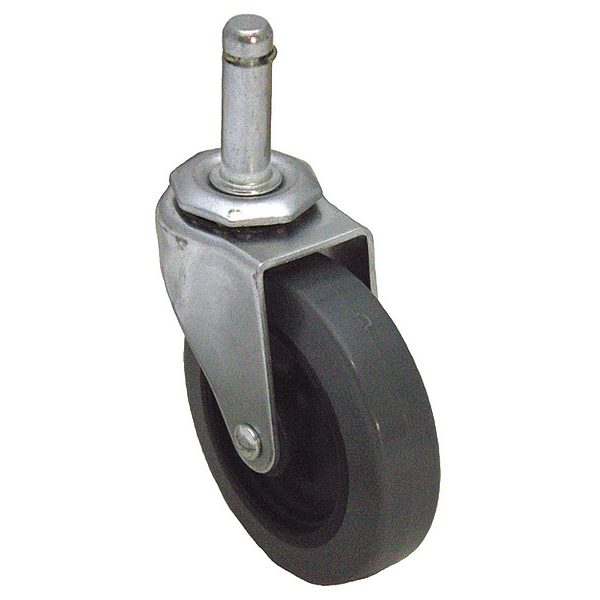

Stem Caster, 120 lb. Load, Gray Wheel

  • Mfr # P5S-UP030G-SG1

  • Zoro # G6876803

product price: $6.15
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
3 1/2 in
Load Rating
120 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-UP030G-SG1
Zoro #
G6876803
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
3 1/2 in
Stem Length
1-7/16 in
Caster Thread Size
M8
Overall Height
3-1/2 in
Wheel Dia.
3 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
2-5/16 in
Tire Thickness
5/16 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
120 lb
Wheel/Tread Material
Polyurethane
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Wheel Bearings
Plain
Core Color
Gray
Caster Swivel Lock Type
No Lock Included
Wheel Color
Gray
Caster Wheel/Tread Material
Polyurethane
Color
Grey
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Caster Brake Included
No
Caster Product Group
Swivel Caster
Features
Floor Protective
Caster Temp. Range
-15 Degrees To 160 Degrees F
Caster Core Material
Polypropylene
Caster Load Rating Range
Light Duty
Standards
RoHS, ICWM
Material
Polyurethane
Caster Raceway
Double Ball
Caster Wheel Shape
Standard
Swivel Lock Type
No Lock Included
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Wheel/Tread Color
Gray
Wheel/Tread Hardness
50-60 Shore D
Caster Break Type
No Brake Included
Extended Lead
No
System of Measurement
Inch
Caster Mounting Type
Grip Ring Stem
Series
P5 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread Color
Gray
Load Capacity
120 lb
Includes Thread Guards
No
Tread
Standard
For Surface Type
Tile, Vinyl, Wood
Wheel Hardness Rating
60 Shore D
Load Capacity - Maximum
120 lb
Wheel Core Type
Solid
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Caster Features
Corrosion-Resistant, Quiet-Roll

Description

Stem Caster, Swivel Caster, 120 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 7/8 in Wheel Width, Polyurethane Wheel/Tread Material, 3 1/2 in Mounting Height, Plain, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
