  11. Stem Caster, 130 lb. Load, Gray Wheel

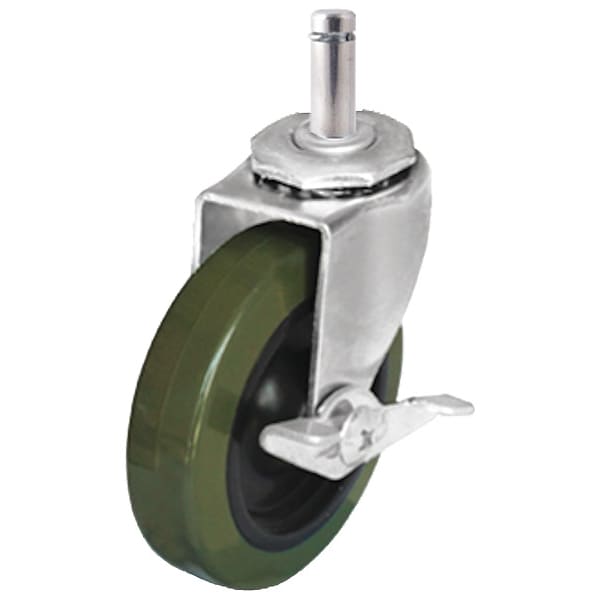

Zoro Select Stem Caster, 130 lb. Load, Gray Wheel P5S-UP040G-SG5-SB - main

Stem Caster, 130 lb. Load, Gray Wheel

  • Mfr # P5S-UP040G-SG5-SB

  • Zoro # G3317248

product price: $17.19
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
4 13/16 in
Load Rating
130 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-UP040G-SG5-SB
Zoro #
G3317248
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
4 13/16 in
Stem Length
7/8 in
Overall Height
4-7/8 in
Wheel Dia.
4 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 7/8 in
Swivel Radius
3-5/16 in
Tire Thickness
5/16 in

Details

Item
Swivel Stem Caster With Brake
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
130 lb
Wheel/Tread Material
Polyurethane
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
Side Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Standards
RoHS, ICWM
Caster Raceway
Double Ball
Caster Temp. Range
-15 Degrees To 160 Degrees F
Caster Temp. Range Available
Yes
Caster Wheel Bearings
Plain
Caster Core Material
Polypropylene
Caster Product Group
Swivel Caster With Brake
Wheel Color
Gray
Core Color
Gray
Caster Wheel Shape
Standard
Caster Wheel/Tread Material
Polyurethane
Caster Swivel Lock Type
No Lock Included
Caster Load Rating Range
Light Duty
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Features
Floor Protective
Frame Finish
Zinc Plated
Includes
Pinch Type Brake
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Operating Temperature Range
-15 Degrees to 160 Degrees F
Wheel/Tread Color
Gray
Includes Thread Guards
No
Tread
Standard
Extended Lead
No
Load Capacity
130 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
Caster Break Type
Pinch Type
System of Measurement
Inch
Series
P5 Series
Caster Mounting Type
Grip Ring Stem
ESD Conductive
No
Wheel/Tread Hardness
50-60 Shore D
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F
Wheel Hardness Rating
60 Shore D
For Surface Type
Tile, Vinyl, Wood
Wheel Core Type
Solid
Load Capacity - Maximum
130 lb
Caster Features
Corrosion-Resistant, Quiet-Roll

Description

Stem Caster, Swivel Caster with Brake, 130 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 in Wheel Width, Polyurethane Wheel/Tread Material, 4 13/16 in Mounting Height, Plain, 7/16 in x 7/8 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
