  11. Stem Caster, 150 lb. Load, Black Wheel

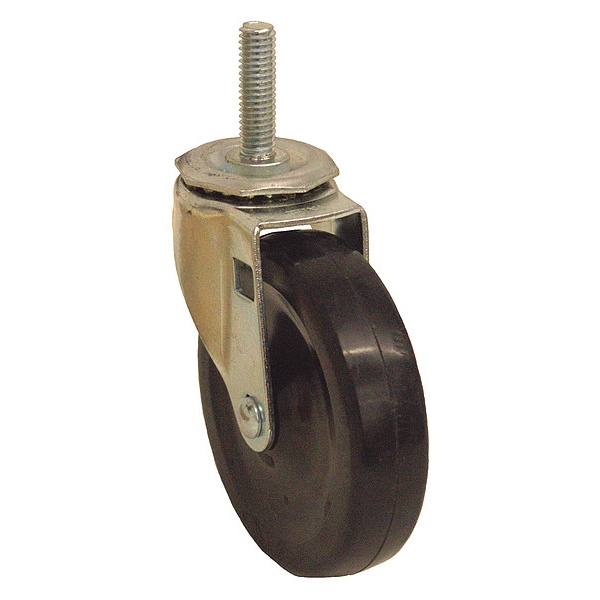

Zoro Select Stem Caster, 150 lb. Load, Black Wheel P5S-R040G-ST76 - main

Stem Caster, 150 lb. Load, Black Wheel

  • Mfr # P5S-R040G-ST76

  • Zoro # G3316907

product price: $12.69
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
4 13/16 in
Load Rating
130 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-R040G-ST76
Zoro #
G3316907
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
4 13/16 in
Stem Length
1-1/2 in
Thread Size
7/16"-14
Wheel Dia.
4 in
Overall Height
4-7/8 in
Caster Thread Size
7/16"-14
Stem Dia.
7/16 in
Caster Stem Size
7/16"-14 x 1-1/2 in
Swivel Radius
3-5/16 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
130 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Caster Raceway
Double Ball
Caster Sub-Type
Swivel
Caster Wheel Shape
Standard
Caster Load Rating Range
Light Duty
Features
Smooth and Quiet
Caster Brake Included
No
Caster Wheel/Tread Material
Solid Rubber
Core Color
Black
Standards
RoHS, ICWM
Wheel Color
Black
Caster Temp. Range
-20 Degrees To 125 Degrees F
Frame Finish
Zinc Plated
Caster Core Material
Rubber
Caster Temp. Range Available
Yes
Caster Product Group
Swivel Caster
Caster Wheel Bearings
Plain
Caster Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Operating Temperature Range
-15 Degrees to 160 Degrees F
Wheel Core Material
Hard Rubber
Wheel/Tread Color
Black
ESD Conductive
No
Series
P5 Series
Wheel/Tread Hardness
70-85 Shore A
Includes Thread Guards
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Break Type
No Brake Included
System of Measurement
Inch
Caster Mounting Type
Threaded Stem
Extended Lead
No
Load Capacity
130 lb
Tread Color
Black
Tread
Standard
For Surface Type
Tile, Vinyl, Wood
Operating Temperature - Maximum
160 Degrees F
Load Capacity - Maximum
130 lb
Wheel Hardness Rating
80 Shore A
Caster Features
Corrosion-Resistant, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature - Minimum
-15 Degrees F

Description

Stem Caster, Swivel Caster, 130 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 4 13/16 in Mounting Height, Plain, 7/16 In.-14 x 1-1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
