  11. Stem Caster, 165 lb. Load Rating, Swivel

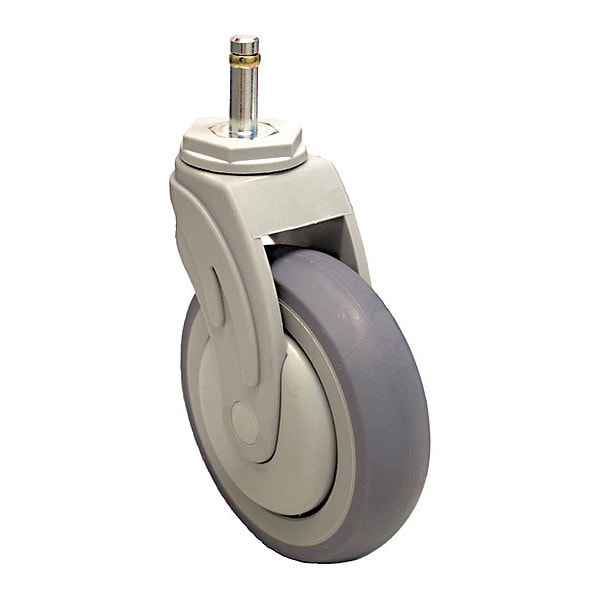

Zoro Select Stem Caster, 165 lb. Load Rating, Swivel P17S-RP030K-SG1 - main

Stem Caster, 165 lb. Load Rating, Swivel

  • Mfr # P17S-RP030K-SG1

  • Zoro # G1610942

product price: $26.69
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
4 7/8 in
Load Rating
165 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP030K-SG1
Zoro #
G1610942
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
4 7/8 in
Stem Length
1-7/16 in
Overall Height
4-7/8 in
Wheel Dia.
3 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
3-1/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
165 lb
Wheel/Tread Material
Polyolefin
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Swivel Lock Type
No Lock Included
Wheel Color
Gray
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Product Group
Swivel Caster
Caster Raceway
Precision Ball
Frame Finish
Natural Light Gray
Caster Wheel Bearings
Precision Ball
Caster Brake Included
No
Caster Temp. Range
-4 Degrees To 140 Degrees F
Core Color
Gray
Caster Load Rating Range
Light Duty
Standards
RoHS, ICWM
Includes
Thread Guards
Caster Temp. Range Available
Yes
Caster Wheel Shape
Standard
Caster Core Material
Polypropylene
Swivel Raceway Type
Sealed Single Ball Bearing
Wheel Core Material
Polypropylene
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Load Capacity
165 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Extended Lead
No
Caster Mounting Type
Grip Ring Stem
System of Measurement
Inch
ESD Conductive
No
Series
P17 Series
Tread
Standard
Tread Color
Gray
Caster Break Type
No Brake Included
Includes Thread Guards
Yes
Wheel/Tread Hardness
85-95 Shore A
Wheel Hardness Rating
70 Shore A
Wheel Core Type
Solid
Frame Color
Gray
For Surface Type
Tile, Vinyl, Wood
Load Capacity - Maximum
165 lb
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll

Description

Stem Caster, Swivel Caster, 165 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Polyolefin Wheel/Tread Material, 4 7/8 in Mounting Height, Ball, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Glass Filled Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
