  11. Stem Caster, 175 lb. Ld, 3/8" Stem Dia.

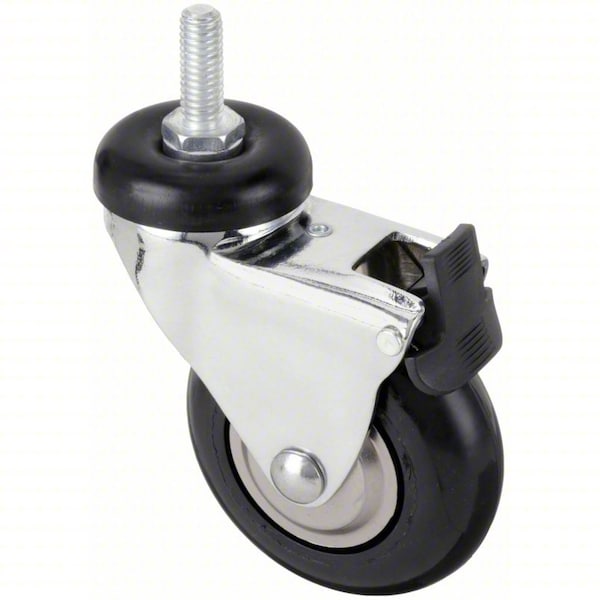

Zoro Select Stem Caster, 175 lb. Ld, 3/8" Stem Dia. P7S-SRP030K-ST3-TB - main

Stem Caster, 175 lb. Ld, 3/8" Stem Dia.

  • Mfr # P7S-SRP030K-ST3-TB

  • Zoro # G5557942

product price: $29.89
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Crowned
Wheel Width
1 in
Mounting Height
4 in
Load Rating
175 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P7S-SRP030K-ST3-TB
Zoro #
G5557942
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 in
Mounting Height
4 in
Stem Length
1 in
Thread Size
3/8"-16
Overall Height
4 in
Wheel Dia.
3 in
Stem Dia.
3/8 in
Caster Thread Size
3/8"-16
Caster Stem Size
3/8"-16 x 1 in
Swivel Radius
2-3/4 in
Tire Thickness
1/2 in

Details

Item
Swivel Stem Caster With Total-Lock
Caster Stem Type
Threaded Stem
Tread Shape
Crowned
Load Rating
175 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
Total Lock
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Product Group
Swivel Caster With Total-Lock
Caster Raceway
Double Ball
Caster Load Rating Range
Light Duty
Core Color
Black
Caster Core Material
Polypropylene
Standards
RoHS, ICWM
Features
Floor Protection, Noiseless Stem
Caster Brake Included
Yes
Frame Finish
Chrome Plated
Caster Swivel Lock Type
Total-Lock
Caster Temp. Range Available
Yes
Wheel Color
Black
Caster Wheel/Tread Material
Neoprene
Caster Wheel Bearings
Precision Ball
Caster Wheel Shape
Standard
Caster Temp. Range
-20 Degrees To 180 Degrees F
Includes
Thread Guards, Total-Lock
Caster Sub-Type
Swivel
Swivel Raceway Type
Double Ball
Swivel Lock Type
Total Lock
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel Core Material
Polypropylene
Wheel/Tread Color
Black
Load Capacity
175 lb
System of Measurement
Inch
Includes Thread Guards
Yes
Caster Mounting Type
Threaded Stem
Series
P7 Series
Tread
Standard
Wheel/Tread Hardness
70 Shore A
Tread Color
Black
Caster Break Type
Total Lock
ESD Conductive
No
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
175 lb
For Surface Type
Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
65 Shore A
Wheel Core Type
Solid
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Stem Caster, Swivel Caster with Total Lock, 175 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 4 in Mounting Height, Ball, 3/8 In.-16 x 1 in Caster Stem Size, Threaded, Steel Caster Frame Material, Chrome Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
