  11. Stem Caster, 220 lb. Ld Rating, Gray Wheel

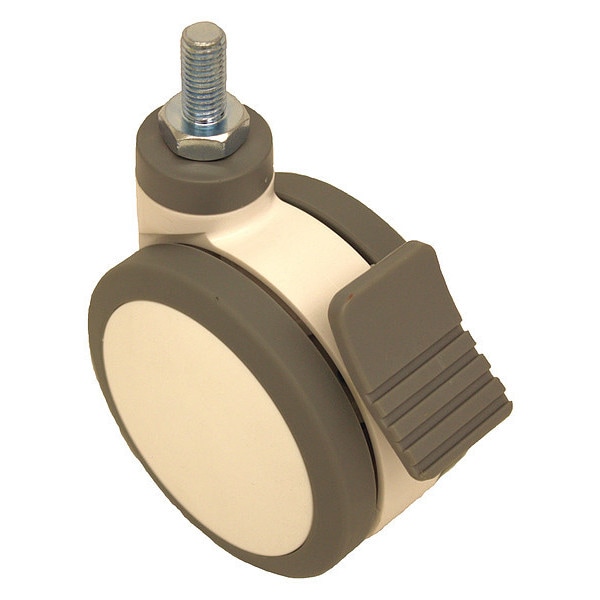

Zoro Select Stem Caster, 220 lb. Ld Rating, Gray Wheel P18S-UP100K-ST8-TB - main

Stem Caster, 220 lb. Ld Rating, Gray Wheel

  • Mfr # P18S-UP100K-ST8-TB

  • Zoro # G1617470

product price: $29.19
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
70 mm
Mounting Height
130 mm
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P18S-UP100K-ST8-TB
Zoro #
G1617470
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
70 mm
Mounting Height
130 mm
Stem Length
25 mm
Thread Size
M12x1.75
Wheel Dia.
100 mm
Stem Dia.
12 mm
Overall Height
130 mm
Caster Thread Size
M12
Caster Stem Size
15/32 in x 63/64 in
Swivel Radius
79 mm
Tire Thickness
8 mm

Details

Item
Swivel Stem Caster With Total-Lock
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Polyurethane
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
Total Lock
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
2
Caster Wheel Shape
Twin Wheel
Caster Load Rating Range
Light Duty
Caster Product Group
Swivel Caster With Total-Lock
Caster Sub-Type
Swivel
Wheel Color
Gray
Caster Wheel/Tread Material
Polyurethane
Caster Temp. Range
-15 Degrees To 160 Degrees F
Caster Swivel Lock Type
Total-Lock
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Caster Wheel Bearings
Precision Ball
Standards
RoHS, ICWM
Frame Finish
Natural Light Gray
Caster Core Material
Polypropylene
Load Capacity
220 lb
Includes
Total-Lock
System of Measurement
Inch
Caster Raceway
Precision Ball
Core Color
White
Swivel Lock Type
Total Lock
Wheel Core Material
Polypropylene
Operating Temperature Range
-40 Degrees to 180 Degrees F
Swivel Raceway Type
Sealed Single Ball Bearing
Wheel/Tread Color
Gray
Series
P18 Series
Extended Lead
No
ESD Conductive
No
Caster Mounting Type
Threaded Stem
Tread
Standard
Tread Color
Black
Wheel/Tread Hardness
50-60 Shore D
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Caster Break Type
Total Lock
Caster Features
Corrosion-Resistant, Easy Turn
Load Capacity - Maximum
220 lb
Operating Temperature - Maximum
180 Degrees F
Wheel Hardness Rating
60 Shore D
Wheel Core Type
Solid
Frame Color
White
Operating Temperature - Minimum
-40 Degrees F
For Surface Type
Tile, Vinyl, Wood

Description

Stem Caster, Swivel Caster with Total Lock, 220 lb Load Rating, 0 to 299 lb, 3 15/16 in Wheel Dia., 2 3/4 in Wheel Width, Polyurethane Wheel/Tread Material, 130 mm Mounting Height, Ball, 15/32 in x 63/64 in Caster Stem Size, Threaded, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 2 Number of Wheels
