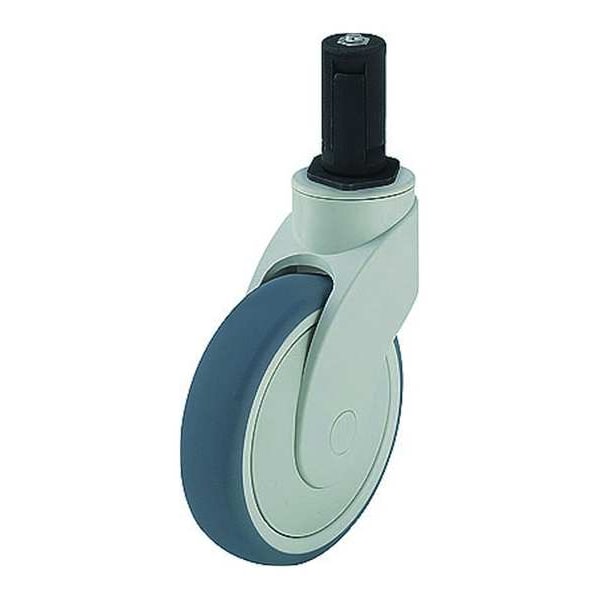

Zoro Select Stem Caster, 242 lb. Load Rating, Swivel LWK-TPA 126KF-11-ER52 - main

Stem Caster, 242 lb. Load Rating, Swivel

  • Mfr # LWK-TPA 126KF-11-ER52

  • Zoro # G6266957

product price:  $50.19
/ea

Key Features

Caster Stem Type
Expanding Adapter
Tread Shape
Standard
Wheel Width
32 mm
Mounting Height
160 mm
Load Rating
240 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LWK-TPA 126KF-11-ER52
Zoro #
G6266957
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
32 mm
Mounting Height
160 mm
Stem Length
2 35/64 in
Thread Size
M10-1.5
Stem Dia.
1/2 in
Wheel Dia.
125 mm
Overall Height
160 mm
Caster Thread Size
M8
Caster Stem Size
1/2"-13 x 2-35/64 in
Swivel Radius
102.5 mm
Mounting Bolt Dia.
M12
Stem Diameter - Minimum
20 mm
Tire Thickness
8 mm

Details

Item
Swivel Hollow Kingpin Caster
Caster Stem Type
Expanding Adapter
Tread Shape
Standard
Load Rating
240 lb
Wheel/Tread Material
Rubber
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Temp. Range Available
Yes
Caster Swivel Lock Type
No Lock Included
Caster Product Group
Swivel Caster
Caster Load Rating Range
Light Duty
Standards
RoHS, ICWM
Core Color
Gray
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Temp. Range
-20 Degrees To 60 Degrees C
Caster Sub-Type
Swivel
Wheel Color
Gray
Includes
Thread Guards
Caster Core Material
Polypropylene
Caster Wheel Shape
Standard
Caster Wheel Bearings
Precision Ball
Caster Brake Included
No
Caster Raceway
Single Ball
Frame Finish
Natural White
Replacement Wheel
Mfr. No. TPA 126/8K-FK
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double-Sealed Grooved Ball Bearing
Wheel/Tread Color
Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
System of Measurement
Metric
Caster Break Type
No Brake Included
Extended Lead
No
ESD Conductive
No
Includes Thread Guards
Yes
Series
LWK Series
Load Capacity
110 kg
Tread Color
Gray
Wheel/Tread Hardness
85 Shore A
Caster Mounting Type
Hollow Kingpin
Tread
Standard
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Wheel Core Type
Solid
Frame Color
Gray
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
For Surface Type
Tile, Vinyl, Wood
Wheel Hardness Rating
85 Shore A
Load Capacity - Maximum
240 lb

Description

Stem Caster, Swivel Caster, 240 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 160 mm Mounting Height, Ball, 1/2 In.-13 x 2-35/64 in Caster Stem Size, Expanding Adapter, Glass Filled Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
