  11. Stem Caster, 325 lb. Load, Gray Wheel

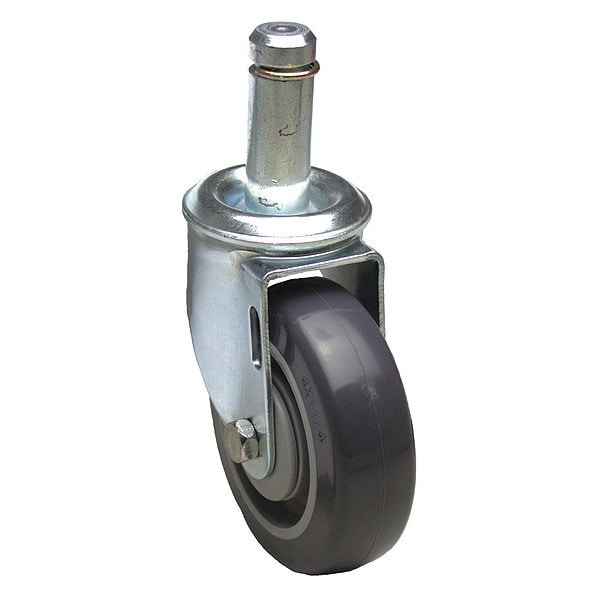

Zoro Select Stem Caster, 325 lb. Load, Gray Wheel P12S-UP050D-SG7 - main

Stem Caster, 325 lb. Load, Gray Wheel

  • Mfr # P12S-UP050D-SG7

  • Zoro # G6873723

product price: $25.99
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
6 in
Load Rating
325 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-UP050D-SG7
Zoro #
G6873723
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
6 in
Stem Length
2-1/8 in
Caster Thread Size
M8
Stem Dia.
27/32 in
Overall Height
6-1/16 in
Wheel Dia.
5 in
Caster Stem Size
7/8 in x 2-1/8 in
Swivel Radius
4 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
325 lb
Wheel/Tread Material
Polyurethane
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Delrin
Number of Wheels
1
Standards
RoHS, ICWM, NSF
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-UP-050x013/038D
Caster Wheel/Tread Material
Polyurethane
Caster Raceway
Double Ball
Caster Temp. Range Available
Yes
Caster Product Group
Swivel Caster
Core Color
Gray
Caster Core Material
Polypropylene
Caster Temp. Range
-15 Degrees To 160 Degrees F
Wheel Color
Gray
Caster Wheel Shape
Standard
Color
Grey
Caster Swivel Lock Type
No Lock Included
Frame Finish
Zinc Plated
Caster Load Rating Range
Light Duty
Features
Floor Protective
Caster Wheel Bearings
Delrin
Material
Polyurethane
Caster Sub-Type
Swivel
Swivel Raceway Type
Double Ball
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Wheel/Tread Color
Gray
Series
P12 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Wheel/Tread Hardness
50-60 Shore D
Caster Break Type
No Brake Included
Load Capacity
325 lb
Tread Color
Gray
Tread
Standard
ESD Conductive
No
System of Measurement
Inch
Extended Lead
No
Caster Mounting Type
Grip Ring Stem
Wheel Core Type
Solid
Operating Temperature - Maximum
160 Degrees F
Caster Features
Corrosion-Resistant, Quiet-Roll
Load Capacity - Maximum
325 lb
Operating Temperature - Minimum
-15 Degrees F
Compatible Wheel Manufacturer Model Number
P-UP-050X013/038D
Wheel Hardness Rating
60 Shore D
For Surface Type
Tile, Vinyl, Wood

Description

Stem Caster, Swivel Caster, 325 lb Load Rating, 300 to 999 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, 6 in Mounting Height, Delrin, 7/8 in x 2-1/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
