  11. Stem Caster, 325 lb. Load, Gray Wheel
Zoro Select Stem Caster, 325 lb. Load, Gray Wheel P20S-UP050K-ST1 - main

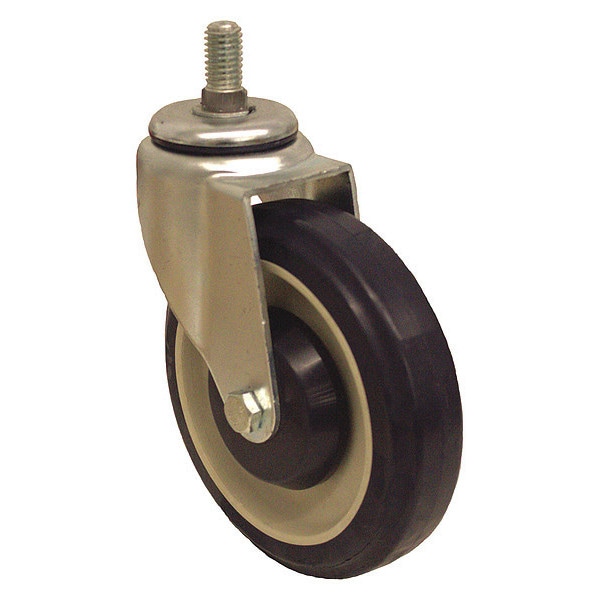

Stem Caster, 325 lb. Load, Gray Wheel

  • Mfr # P20S-UP050K-ST1

  • Zoro # G6617219

product price: $11.59
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
5 7/8 in
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P20S-UP050K-ST1
Zoro #
G6617219
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
5 7/8 in
Stem Length
1-1/2 in
Thread Size
1/2"-13
Caster Thread Size
1/2"-13
Overall Height
5-7/8 in
Width
1/2" (Wheel)
Stem Dia.
1/2 in
Wheel Dia.
5 in
Height
5-7/8"
Caster Stem Size
1/2"-13 x 1-1/2 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Polyurethane
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Wheel Color
Gray
Caster Swivel Lock Type
No Lock Included
Material
Polyurethane (Caster Wheel/Tread), Polypropylene (Caster Core)
Caster Core Material
Polypropylene
Includes
Thread Guards
Caster Wheel/Tread Material
Polyurethane
Frame Finish
Zinc Plated
Caster Raceway
Double Ball
Color
Gray (Wheel), Beige (Core)
Caster Sub-Type
Swivel
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. P-UP5X1.25/8K
Caster Temp. Range Available
Yes
Finish
zinc
Caster Temp. Range
-15 Degrees To 160 Degrees F
Caster Product Group
Swivel Caster
Features
Floor Protective
Caster Brake Included
No
Core Color
Gray
Caster Load Rating Range
Light Duty
Caster Wheel Bearings
Precision Ball
Caster Wheel Shape
Standard
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
Series
P20 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
Tread Color
Blue
Extended Lead
No
Includes Thread Guards
Yes
Wheel/Tread Hardness
50-60 Shore D
Caster Break Type
No Brake Included
Caster Mounting Type
Threaded Stem
Tread
Standard
ESD Conductive
No
Load Capacity
220 lb
Compatible Wheel Manufacturer Model Number
P-UP-050X013/038B
Wheel Hardness Rating
60 Shore D
Operating Temperature - Maximum
160 Degrees F
Load Capacity - Maximum
220 lb
Wheel Core Type
Solid
For Surface Type
Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Quiet-Roll
Operating Temperature - Minimum
-15 Degrees F

Description

Stem Caster, Swivel Caster, 220 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, 5 7/8 in Mounting Height, Ball, 1/2 In.-13 x 1-1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
