  11. Stem Caster, 3/8" Stem Dia., 120 lb. Ld

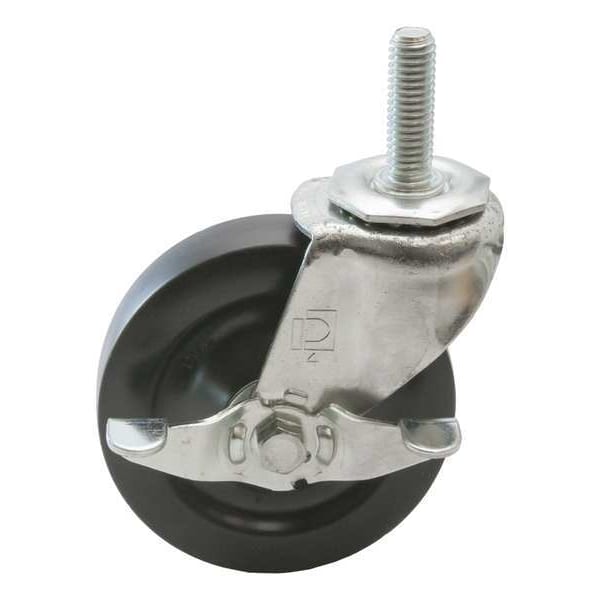

Zoro Select Stem Caster, 3/8" Stem Dia., 120 lb. Ld P5S-R030G-ST4-SB - main

Stem Caster, 3/8" Stem Dia., 120 lb. Ld

  • Mfr # P5S-R030G-ST4-SB

  • Zoro # G3317458

product price: $5.29
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
3 1/2 in
Load Rating
120 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-R030G-ST4-SB
Zoro #
G3317458
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
3 1/2 in
Stem Length
1-1/2 in
Thread Size
3/8"-16
Caster Thread Size
3/8"-16
Overall Height
3-1/2 in
Stem Dia.
3/8 in
Wheel Dia.
3 in
Caster Stem Size
3/8"-16 x 1-1/2 in
Swivel Radius
2-5/16 in

Details

Item
Swivel Stem Caster With Brake
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
120 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
Side Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Core Color
Black
Standards
RoHS, ICWM
Features
Noiseless Stem
Caster Sub-Type
Swivel
Caster Wheel Shape
Standard
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Caster Swivel Lock Type
No Lock Included
Wheel Color
Black
Caster Brake Included
Yes
Caster Temp. Range
-20 Degrees To 125 Degrees F
Caster Core Material
Rubber
Caster Product Group
Swivel Caster With Brake
Caster Raceway
Double Ball
Caster Load Rating Range
Light Duty
Caster Wheel/Tread Material
Solid Rubber
Caster Wheel Bearings
Plain
Includes
Pinch Type Brake
Operating Temperature Range
-40 Degrees to 180 Degrees F
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel Core Material
Hard Rubber
Wheel/Tread Color
Black
Tread Color
Black
ESD Conductive
No
Load Capacity
120 lb
Series
P5 Series
System of Measurement
Inch
Caster Mounting Type
Threaded Stem
Caster Break Type
Pinch Type
Includes Thread Guards
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel/Tread Hardness
70-85 Shore A
Tread
Standard
Extended Lead
No
Wheel Core Type
Solid
Wheel Hardness Rating
80 Shore A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Load Capacity - Maximum
120 lb
For Surface Type
Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Quiet-Roll

Description

Stem Caster, Swivel Caster with Brake, 120 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 7/8 in Wheel Width, Rubber Wheel/Tread Material, 3 1/2 in Mounting Height, Plain, 3/8 In.-16 x 1-1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
