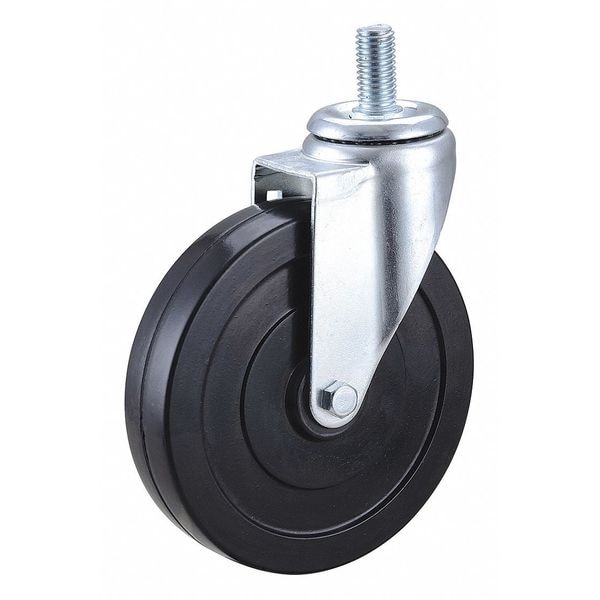

Stem Caster, 6 in Dia, Rubber, 280lb

Mfr # 32J978
Zoro # G4811265

13.15

Key Features

Caster Stem Type

Threaded

Tread Shape

Standard

Wheel Width

1 1/4 in

Mounting Height

7 1/8 in

Load Rating

280 lb

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 32J978
Zoro #: G4811265
UPC #: 190735902349
Country of Origin: China

Dimensions

Wheel Width: 1 1/4 in
Mounting Height: 7 1/8 in
Stem Length: 1 1/4 in
Thread Size: 5/8"-11
Wheel Dia.: 6 in
Overall Height: 7 1/8 in
Stem Dia.: 5/8 in
Caster Thread Size: 5/8-11
Caster Stem Size: 5/8"-11 x 1-1/4 in

Details

Item: Stem Caster
Caster Stem Type: Threaded
Tread Shape: Standard
Load Rating: 280 lb
Load Rating Range: 0 to 299 lb
Wheel/Tread Material: Rubber
Application: U.S. Postal Service Hampers and Utility Carts
Non-Marking: No
Caster Brake Type: No Brake
Caster Frame Material: Steel
Wheel Bearing Type: Plain
Number of Wheels: 1
Caster Brake Included: No
Standards: ANSI ICWM
Caster Temp. Range: -40 Degrees to 158 Degrees F
Caster Sub-Type: Swivel
Caster Raceway: Double Ball
Caster Load Rating Range: Light-Duty
Caster Temp. Range Available: Yes
Replacement Wheel: 26Y377
Frame Finish: Zinc Plated
Caster Wheel Bearings: Plain
Wheel Color: Black
Caster Product Group: Swivel Caster
Includes: Thread guards
Caster Wheel/Tread Material: Rubber
Core Color: Black
Caster Core Material: Rubber
Wheel Core Material: Rubber
Swivel Raceway Type: Double Ball
Operating Temperature Range: -40 Degrees to 158 Degrees F
Wheel/Tread Color: Black
Caster Mounting Type: Stem
Operating Temperature - Minimum: -40 Degrees F
Load Capacity - Maximum: 280 lb
Operating Temperature - Maximum: 158 Degrees F
Includes Spanner Bushing: No
Wheel Hardness Rating: 70 Shore D

Description

Stem Caster, Swivel Caster, 280 lb Load Rating, 0 to 299 lb, 6 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 7 1/8 in Mounting Height, Plain, 5/8 In.-11 x 1-1/4 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
