  11. Stem Caster, 75 lb. Load, Black Wheel

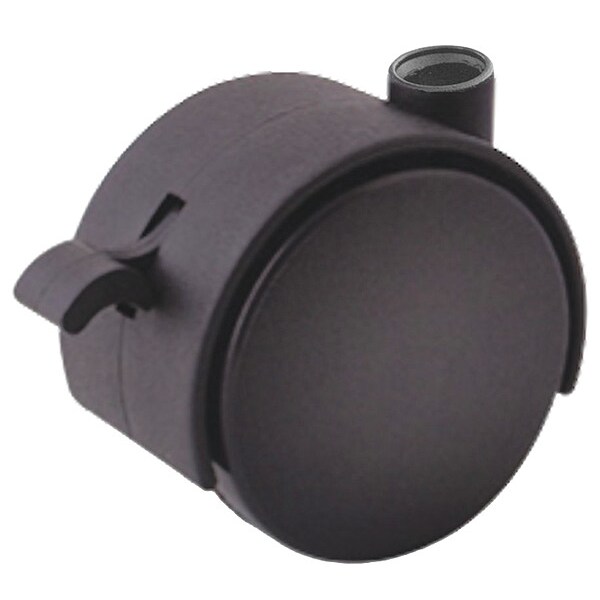

Zoro Select Stem Caster, 75 lb. Load, Black Wheel P3S-UN50G-H-WB - main

Stem Caster, 75 lb. Load, Black Wheel

  • Mfr # P3S-UN50G-H-WB

  • Zoro # G3316986

product price: $3.15
/ea
Sold in multiples of 5 for $15.75

Key Features

Caster Stem Type
Hollow Kingpin
Tread Shape
Standard
Wheel Width
50 mm
Mounting Height
2 1/2 in
Load Rating
75 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P3S-UN50G-H-WB
Zoro #
G3316986
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
50 mm
Mounting Height
2 1/2 in
Wheel Dia.
50 mm
Overall Height
65 mm
Bolt Hole Dia.
7/16 in
Mounting Bolt Dia.
7/16 in
Swivel Radius
3 in

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Stem Type
Hollow Kingpin
Tread Shape
Standard
Load Rating
75 lb
Wheel/Tread Material
Polyurethane
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
Side Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Plain
Wheel/Tread Hardness Rating
Not Rated
Number of Wheels
2
Caster Wheel Bearings
Plain
Caster Raceway
Plain Bore
Caster Wheel Shape
Standard
Standards
RoHS, ICWM
Wheel Color
Black
Caster Wheel/Tread Material
Polyurethane
Caster Product Group
Swivel Caster With Brake
Caster Load Rating Range
Light Duty
Caster Temp. Range
-15 Degrees To 160 Degrees F
Core Color
Black
Features
Sealed Precision Bearing Raceway
Caster Core Material
Nylon
Caster Swivel Lock Type
No Lock Included
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Includes
Strap Type Brake
Frame Finish
Natural Black
Swivel Raceway Type
Plain Bore
Operating Temperature Range
-15 Degrees to 160 Degrees F
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness
92 Shore A
Extended Lead
No
Caster Break Type
Clicking Trailing End
ESD Conductive
No
Tread Color
Black
System of Measurement
Inch
Load Capacity
75 lb
Series
P3 Series
Caster Mounting Type
Hollow Kingpin
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Operating Temperature - Minimum
160 Degrees F
Operating Temperature - Maximum
-15 Degrees F
Load Capacity - Maximum
75 lb

Description

Bolt-Hole Caster, 7/16 in Bolt Hole Dia., 7/16 in Mounting Bolt Dia., Steel Caster Frame Material, Nylon Frame Finish, 0 to 299 lb Load Rating Range, 75 lb Load Rating, 2 Number of Wheels, Plain, 2 1/2 in Mounting Height, 1 15/16 in Wheel Dia., 1 7/8 in Wheel Width, Polyurethane Wheel/Tread Material, Not Rated, Yes Non-Marking
