  11. Stem Caster, Light-Duty, 4-3/4" Overall H

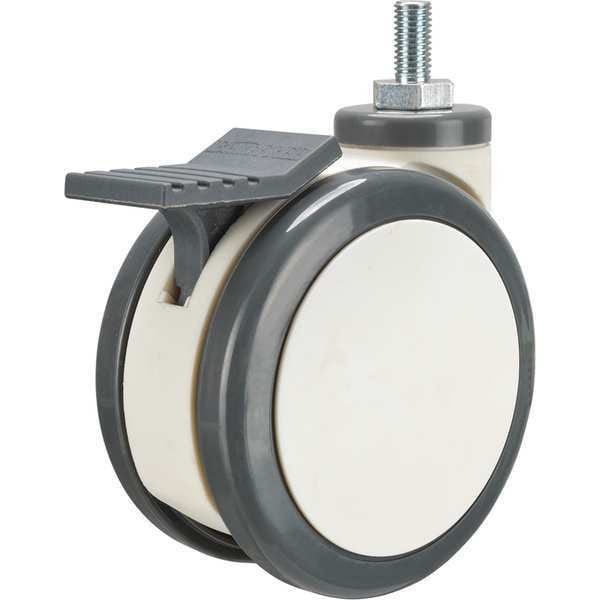

Zoro Select Stem Caster, Light-Duty, 4-3/4" Overall H P18S-N100K-ST8-WB-001 - main

Stem Caster, Light-Duty, 4-3/4" Overall H

  • Mfr # P18S-N100K-ST8-WB-001

  • Zoro # G0232263

product price: $36.89
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
70 mm
Mounting Height
130 mm
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P18S-N100K-ST8-WB-001
Zoro #
G0232263
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
70 mm
Mounting Height
130 mm
Stem Length
25 mm
Thread Size
M12x1.75
Stem Dia.
12 mm
Wheel Dia.
100 mm
Caster Thread Size
M12
Overall Height
130 mm
Caster Stem Size
M12-25 x 25/32 in
Swivel Radius
79 mm

Details

Item
Swivel Stem Caster With Brake
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Nylon
Application
Retail, Industrial, Commercial, Corrosion Resistance
Non-Marking
Yes
Caster Brake Type
Face Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
2
Caster Wheel/Tread Material
Nylon
Caster Product Group
Swivel Caster With Brake
Caster Sub-Type
Swivel
Caster Wheel Bearings
Precision Ball
Caster Temp. Range Available
Yes
Caster Raceway
Precision Ball
Includes
Strap Type Brake
Frame Finish
Natural Light Gray
Caster Swivel Lock Type
No Lock Included
Caster Brake Included
Yes
Standards
RoHS, ICWM
Features
Maintenance Free
Caster Wheel Shape
Twin Wheel
Wheel Color
Gray
Caster Temp. Range
-20 Degrees To 250 Degrees F
Core Color
White
Caster Load Rating Range
Light Duty
Caster Core Material
Nylon
Caster Mounting Type
Threaded Stem
Tread
Standard
System of Measurement
Inch
Tread Color
Black
Operating Temperature Range
20 Degrees to 176 Degrees F
Wheel Core Material
Polypropylene
Swivel Raceway Type
Sealed Single Ball Bearing
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Extended Lead
No
Load Capacity
220 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Caster Break Type
Strap Type Brake
Series
P18 Series
Includes Thread Guards
No
Wheel/Tread Hardness
70-80 Shore D
Wheel Core Type
Solid
Load Capacity - Maximum
220 lb
For Surface Type
Tile, Vinyl, Wood
Wheel Hardness Rating
80 Shore D
Frame Color
White
Caster Features
Corrosion-Resistant, Easy Turn, Maintenance-Free
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
20 Degrees F

Description

Stem Caster, Swivel Caster with Brake, 220 lb Load Rating, 0 to 299 lb, 3 15/16 in Wheel Dia., 2 3/4 in Wheel Width, Nylon Wheel/Tread Material, 130 mm Mounting Height, Ball, M12-25 x 25/32 in Caster Stem Size, Threaded, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 2 Number of Wheels
