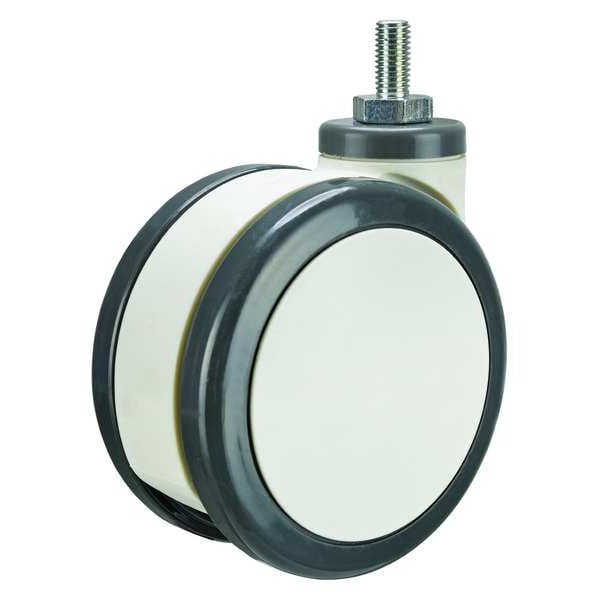

Zoro Select Stem Caster, Light-Duty, Swivel P18S-N100K-ST10-001 - main

Stem Caster, Light-Duty, Swivel

  • Mfr # P18S-N100K-ST10-001

  • Zoro # G0232187

product price: $35.79
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
70 mm
Mounting Height
130 mm
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P18S-N100K-ST10-001
Zoro #
G0232187
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
70 mm
Mounting Height
130 mm
Stem Length
15/32 in
Thread Size
M12x1.75
Overall Height
130 mm
Wheel Dia.
100 mm
Caster Thread Size
M12
Stem Dia.
12 mm
Caster Stem Size
5/8"-18 x 15/32 in
Swivel Radius
79 mm

Details

Item
Swivel Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Nylon
Application
Retail, Industrial, Commercial, Corrosion Resistance
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
2
Wheel Color
Gray
Includes
Dust Cover, Thread Guards
Frame Finish
Natural Light Gray
Features
Maintenance Free
Caster Product Group
Swivel Caster
Caster Wheel Bearings
Precision Ball
Caster Wheel Shape
Twin Wheel
Caster Load Rating Range
Light Duty
Caster Raceway
Precision Ball
Caster Wheel/Tread Material
Nylon
Caster Temp. Range Available
Yes
Caster Temp. Range
-20 Degrees To 250 Degrees F
Caster Swivel Lock Type
No Lock Included
Standards
RoHS, ICWM
Core Color
White
Caster Brake Included
No
Caster Sub-Type
Swivel
Caster Core Material
Nylon
Tread Color
Black
Tread
Standard
System of Measurement
Inch
Caster Mounting Type
Threaded Stem
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Operating Temperature Range
20 Degrees to 176 Degrees F
Swivel Raceway Type
Sealed Single Ball Bearing
Wheel/Tread Color
Gray
Extended Lead
No
Load Capacity
220 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Hardness
70-80 Shore D
ESD Conductive
No
Includes Thread Guards
No
Series
P18 Series
Caster Break Type
No Brake Included
Load Capacity - Maximum
220 lb
For Surface Type
Tile, Vinyl, Wood
Operating Temperature - Maximum
176 Degrees F
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Easy Turn, Maintenance-Free
Frame Color
White
Operating Temperature - Minimum
20 Degrees F
Wheel Hardness Rating
80 Shore D

Description

Stem Caster, Swivel Caster, 220 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 2 3/4 in Wheel Width, Nylon Wheel/Tread Material, 130 mm Mounting Height, Ball, 5/8 In.-18 x 15/32 in Caster Stem Size, Threaded, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 2 Number of Wheels
