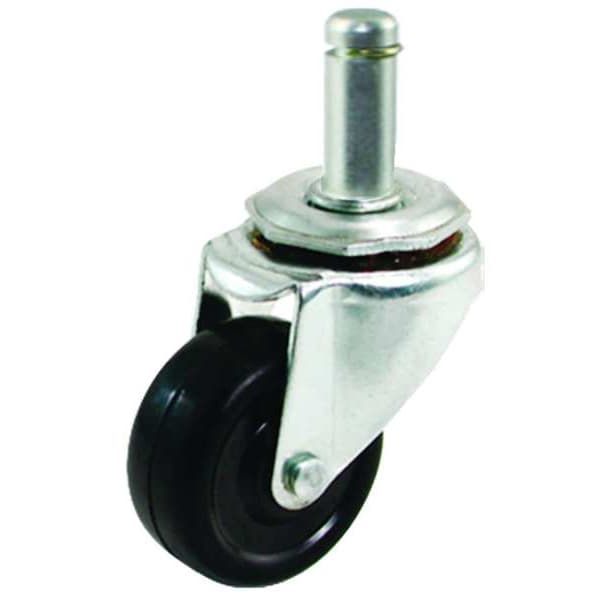

Zoro Select Stem Caster, Load Rating 120 lb. P5S-R030G-SG5 - main

Stem Caster, Load Rating 120 lb.

  • Mfr # P5S-R030G-SG5

  • Zoro # G3323959

product price:  $3.89
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
3 1/2 in
Load Rating
120 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P5S-R030G-SG5
Zoro #
G3323959
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
3 1/2 in
Stem Length
7/8 in
Overall Height
3 27/64 in
Wheel Dia.
3 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 7/8 in
Swivel Radius
2-5/16 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
120 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Core Color
Black
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Caster Temp. Range
-20 Degrees To 125 Degrees F
Caster Raceway
Double Ball
Caster Load Rating Range
Light Duty
Caster Brake Included
No
Wheel Color
Black
Caster Wheel Shape
Standard
Caster Wheel/Tread Material
Solid Rubber
Features
Noise Reduction
Caster Wheel Bearings
Plain
Standards
DIN EN 12530
Caster Core Material
Rubber
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Swivel Raceway Type
Double Ball
Wheel Core Material
Rubber
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Caster Break Type
No Brake Included
Wheel/Tread Hardness
70-85 Shore A
Extended Lead
No
Caster Mounting Type
Grip Ring Stem
Tread Color
Black
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread
Standard
System of Measurement
Inch
Load Capacity
120 lb
Includes Thread Guards
No
Series
Pegasus 5
Wheel Core Type
Solid
Operating Temperature - Maximum
180 Degrees F
For Surface Type
Tile, Vinyl, Wood
Operating Temperature - Minimum
-20 Degrees F
Load Capacity - Maximum
120 lb
Wheel Hardness Rating
80 Shore A
Caster Features
Corrosion-Resistant, Quiet-Roll

Description

Stem Caster, Swivel Caster, 120 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 7/8 in Wheel Width, Rubber Wheel/Tread Material, 3 1/2 in Mounting Height, Plain, 7/16 in x 7/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
