  11. Stem Caster, Load Rating 175 lb.

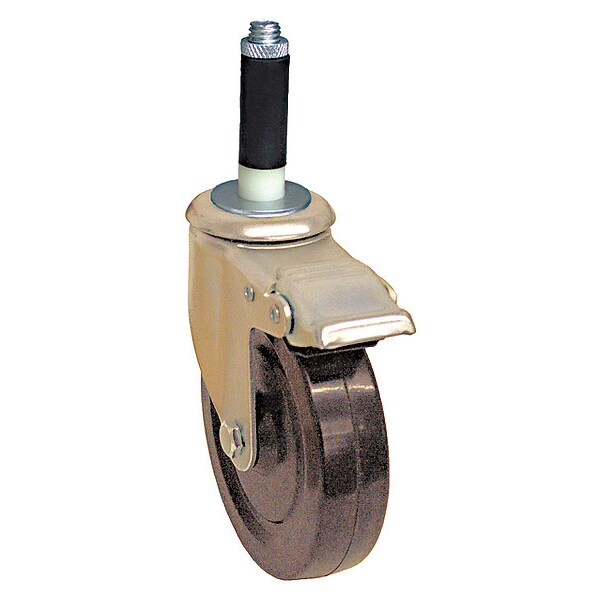

Zoro Select Stem Caster, Load Rating 175 lb. P12S-R050B-SX2-TB - main

Stem Caster, Load Rating 175 lb.

  • Mfr # P12S-R050B-SX2-TB

  • Zoro # G3317485

product price: $36.49
/ea

Key Features

Caster Stem Type
Expandable Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
6 in
Load Rating
175 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-R050B-SX2-TB
Zoro #
G3317485
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
6 in
Stem Length
2-1/2 in
Thread Size
1/2"-13
Stem Dia.
7/8 in - 1 in
Overall Height
6-1/16 in
Caster Thread Size
1/2"-13
Wheel Dia.
5 in
Caster Stem Size
1/2"-13 x 2-9/16 in
Swivel Radius
4 in
Stem Diameter - Minimum
7/8 in

Details

Item
Swivel Expanding Stem Caster With Total-Lock
Caster Stem Type
Expandable Stem
Tread Shape
Standard
Load Rating
175 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
Total Lock
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Features
Noise Reduction
Caster Wheel/Tread Material
Solid Rubber
Wheel Color
Black
Caster Wheel Bearings
Annular Ball
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Caster Brake Included
Yes
Caster Load Rating Range
Light Duty
Caster Wheel Shape
Standard
Caster Swivel Lock Type
Total-Lock
Includes
Total-Lock Brake
Caster Temp. Range
-20 Degrees To 125 Degrees F
Caster Product Group
Swivel Caster With Total-Lock
Core Color
Black
Caster Core Material
Rubber
Caster Raceway
Double Ball
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-R-050x013/038B
Swivel Raceway Type
Double Ball
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel Core Material
Hard Rubber
Swivel Lock Type
Total Lock
Wheel/Tread Color
Black
Load Capacity
175 lb
Tread
Standard
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Includes Thread Guards
No
Tread Color
Black
System of Measurement
Inch
Caster Mounting Type
Expanding Stem
Extended Lead
No
Wheel/Tread Hardness
70-85 Shore A
Series
P12 Series
Caster Break Type
Total Lock
ESD Conductive
No
For Surface Type
Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Wheel Core Type
Solid
Load Capacity - Maximum
175 lb
Wheel Hardness Rating
80 Shore A

Description

Stem Caster, Swivel Caster with Total Lock, 175 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 6 in Mounting Height, Ball, 1/2 In.-13 x 2-9/16 in Caster Stem Size, Expanding Adapter, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
