  11. Stem Caster, Load Rating 90 lb., 2-9/16" H

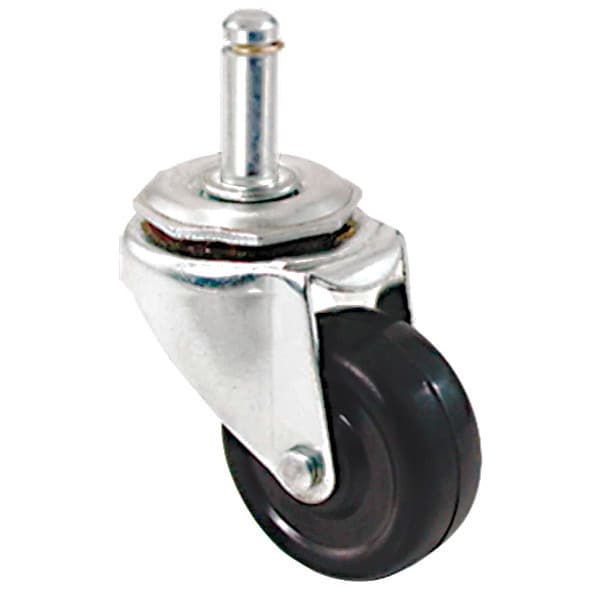

Zoro Select Stem Caster, Load Rating 90 lb., 2-9/16" H P5S-R020G-SG1 - main

Stem Caster, Load Rating 90 lb., 2-9/16" H

  • Mfr # P5S-R020G-SG1

  • Zoro # G5721057

product price: $4.49
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
2 5/8 in
Load Rating
90 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-R020G-SG1
Zoro #
G5721057
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
2 5/8 in
Stem Length
1-7/16 in
Overall Height
2-5/8 in
Wheel Dia.
2 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
1-3/4 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
90 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Caster Wheel/Tread Material
Solid Rubber
Core Color
Black
Features
Noise Reduction
Caster Swivel Lock Type
No Lock Included
Caster Raceway
Double Ball
Caster Temp. Range Available
Yes
Caster Load Rating Range
Light Duty
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Caster Core Material
Rubber
Caster Wheel Bearings
Plain
Caster Brake Included
No
Caster Product Group
Swivel Caster
Caster Wheel Shape
Standard
Wheel Color
Black
Caster Temp. Range
-20 Degrees To 125 Degrees F
Wheel Core Material
Hard Rubber
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Tread
Standard
Wheel/Tread Hardness
70-85 Shore A
Caster Break Type
No Brake Included
Load Capacity
90 lb
ESD Conductive
No
Caster Mounting Type
Grip Ring Stem
System of Measurement
Inch
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Black
Includes Thread Guards
No
Series
P5 Series
Extended Lead
No
Operating Temperature - Maximum
180 Degrees F
Caster Features
Corrosion-Resistant, Quiet-Roll
Operating Temperature - Minimum
-20 Degrees F
Wheel Core Type
Solid
Load Capacity - Maximum
90 lb
For Surface Type
Tile, Vinyl, Wood
Wheel Hardness Rating
80 Shore A

Description

Stem Caster, Swivel Caster, 90 lb Load Rating, 0 to 299 lb, 2 in Wheel Dia., 7/8 in Wheel Width, Rubber Wheel/Tread Material, 2 5/8 in Mounting Height, Plain, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
