  11. Straight Flute Drill, Size 11/32 in, TiAlN
Zoro Select Straight Flute Drill, Size 11/32 in, TiAlN 470-103438B - main

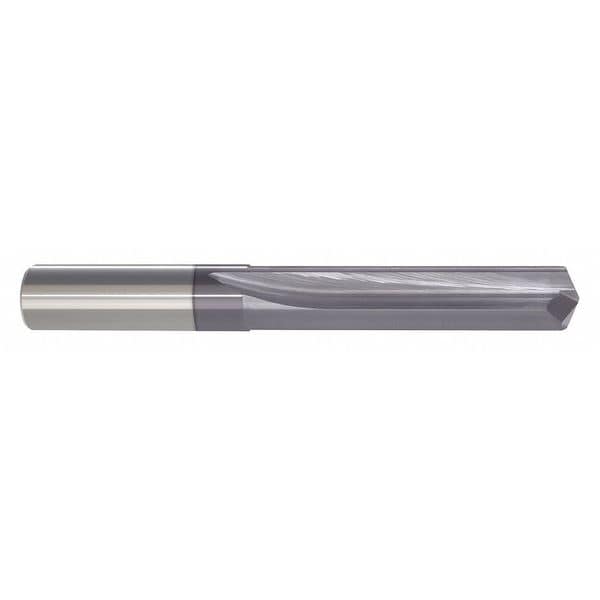

Straight Flute Drill, Size 11/32 in, TiAlN

  • Mfr # 470-103438B

  • Zoro # G4344831

product price: $59.65
/ea
Sold in multiples of 2 for $119.30

Key Features

Overall Length
3 in
Drill Bit Size
11/32 in
Drill Bit Point Angle
140 Degrees
Flute Length
1 11/16 in
Number of Flutes
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
470-103438B
Zoro #
G4344831
UPC #
888226128872
Country of Origin
United States

Dimensions

Overall Length
3 in
Drill Bit Size
11/32 in
Flute Length
1 11/16 in
Fractional Size (In.)
11/32
Depth:Dia. Ratio
5xD
Shank Dia.
11/32 in
Drill Bit Dimension Type
Fractional Inch
Drill Length Class
Jobber-Length
Drill Diameter Tolerance
+0.0000 in/-0.0005 in
Maximum Drilling Depth
1-11/16 in
Shank Length
1 5/16 in

Details

Item
Straight Flute Drill Bit
Drill Bit Point Angle
140 Degrees
Number of Flutes
2
Decimal Equivalent
0.3438
Drill Bit Material
Solid Carbide
Drill Bit Finish
TiAlN
Application
Metalworking
Point type
Notched
Drill Bit Grouping
Drill Bit
Grade
General Purpose
Type
Straight Flute
Drill Point (Deg.)
140 Degrees
Finish
TiAlN
Material
Carbide
Number of Pieces
1
List Number
470
Finish - Machining
AlTiN
Coolant Fed
Non-Coolant Through
Material - Machining
Carbide
Aircraft Drill
No
Measurement System
Fractional Inch
Material Grade - Machining
C2
Cutting Direction
Right Hand
Drill Bit Point Type
Notched Point
Web Construction
Tapered
Shank Type - Machining
Straight
Web Thinning
Thinned
Primary Material Application ISO Code
H, K, M, P, S
Primary Material Application
Cast Iron, Steel
Flute Type
Straight
Helix Angle
0 Degrees
Standards
Not Rated
Point Type
Notched
Secondary Material Application ISO Code
H, N
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel
Spiral Direction
Right Hand

Description

Straight Flute Drill Bit, Drill Bit Size 11/32 in, 140 Degrees Drill Bit Point Angle, Material - Machining Carbide, Finish - Machining AlTiN, Decimal Equivalent 0.3438, Fractional Inch, Notched Point Drill Bit Point Type, Flute Length 1 11/16 in
