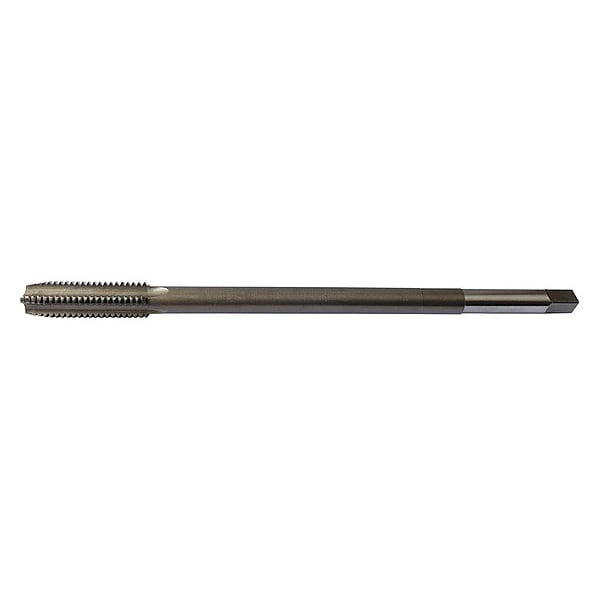

Straight Flute Hand Tap, M5-0.80, Plug, 4 Flutes, UNC

  • Mfr # 20235
  • Zoro # G0247521
product price:
$
60.19
/ea

Key Features

Shank Dia.
5.00mm
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Size
M5
Tap Style
Straight Flute (Hand)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
20235
Zoro #
G0247521
UPC #
-
Country of Origin
United States
Item
Straight Flute Hand Tap
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
Tap Finish
Uncoated
Tap Grouping
Tap
List Number
20235
Number of Pieces
1
Tap Thread Type
UNC
Standards
USCTI
Cutting Direction - Machining
Right Hand
Series
20235
Shank Type - Machining
Straight
Thread Pitch
0.80mm
Thread Standard
Metric
Measurement System
Metric
Tap Shank Standard
USCTI
Spiral Direction
Neutral
Extended Neck
Yes
Thread Limit
D4
Helix Angle
0 Degrees
Shank Type
Straight
Primary Material Application ISO Code
H, K, N, P
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Steel, Tool and Die Steel

Dimensions

Shank Dia.
5.00mm
Tap Size
M5
Tap Dimension Type
Metric
Overall Length
152.00mm
Thread Length
22.00mm
Tap Thread Size
M5-0.80
Pitch Diameter Limit
Not Rated
Shank Length
5 3/32 in
75% Thread Drill Size
4.20 mm
55% Thread Drill Size
4.40 mm
Tap Length Standard
USCTI
Thread Size
M5x0.8
65% Thread Drill Size
4.30 mm
Square Size
0.1520 in
Size
M5
Shank Diameter
3/16 in
Square Length
0.15 in
Square Width
0.15 in

Description

Straight Flute Tap, Thread Size M5x0.8, Metric, Overall Length 6 in, High Speed Steel, Bright (Uncoated), Right Hand
