  11. Swivel NSF-Listed Plate Caster, 375 lb., Ball Bearing
Shop All Plate Casters
Zoro Select

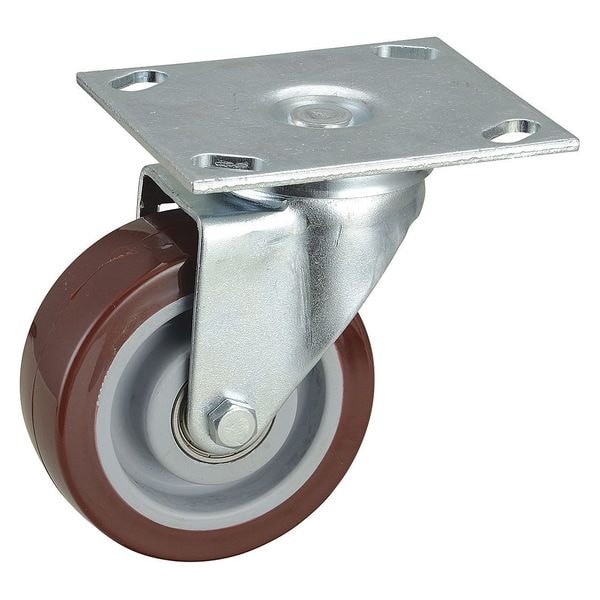

Swivel NSF-Listed Plate Caster, 375 lb., Ball Bearing

product price: $10.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 5-3/16"
Wheel Dia. 4 in
Wheel Width 1 1/2 in
Stem Dia. No Stem
Caster Plate Size 3-3/4" x 4-1/2"
Plate Size 3-3/4" x 4-1/2"
Mounting Bolt Dia. 7/16 in
Mounting Height 5 3/16 in
Mounting Plate Size 3 3/4 in x 4 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 375 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Min. Temp. -40 Degrees F
Caster Raceway Double Ball
Caster Plate Hole Pattern B
Caster Swivel Lock Type No Lock Included
Standards ANSI/ICWM,NSF
Frame Material Steel
Core Color Gray
Frame Finish Zinc Plated
Application Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Temp. Range Available Yes
Inside Bolt Hole Spacing 3 in x 3 in
Wheel Color Red
Extended Lead No
Thread Guards No
Caster Temp. Range -40 Degrees to 180 Degrees F
Caster Max. Temp. 180 Degrees F
Durometer 95 Shore A
Replacement Wheel 26Y376
Caster Plate Thickness 9/64"
Caster Product Group Swivel Caster
Plate Thickness 149/1000"
Includes Dust Cover
Item Debris-Resistant Long-Swivel-Life NSF-Listed Sanitary Plate Caster
Caster Frame Material Steel
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Plate Caster Bolt Hole Pattern B
Non-Marking Yes
Caster Wheel Bearings Ball
Caster Core Material Polyolefin
Caster Brake Type No Brake Included
Mounting Plate Bolt Hole Pattern B
Swivel Raceway Type Double Ball
Wheel/Tread Hardness Rating Firm
Wheel Bearing Type Precision Ball
Tread Shape Standard
Swivel Lock Type No Lock Included
Swivel Construction Kingpin
Number of Mounting Holes 4
Wheel/Tread Hardness 95 Shore A
Load Rating Range 300 to 999 lb
Wheel Core Material Plastic
Includes Thread Guards Yes
Wheel/Tread Material Polyurethane
Wheel/Tread Color Red

Description

Swivel, Debris-Resistant Long-Swivel-Life NSF-Listed Sanitary Plate Caster, Load Rating 375 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
