  11. Swivel NSF-Listed Plate Caster, 4 in. Dia., 275 lb.
Shop All Plate Casters
Zoro Select

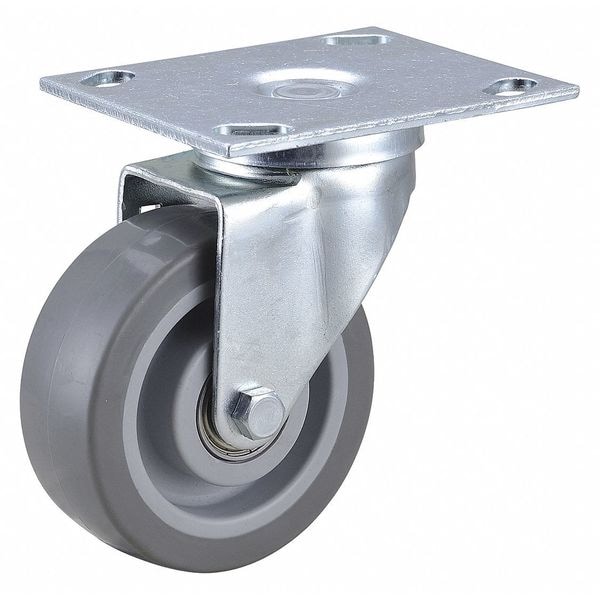

Swivel NSF-Listed Plate Caster, 4 in. Dia., 275 lb.

product price: $12.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 5-3/16"
Wheel Dia. 4 in
Wheel Width 1 1/2 in
Stem Dia. No Stem
Plate Size 3-3/4" x 4-1/2"
Mounting Bolt Dia. 3/8 in
Caster Plate Size 3-3/4" x 4-1/2"
Mounting Height 5 3/16 in
Mounting Plate Size 3 3/4 in x 4 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 275 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Raceway Double Ball
Caster Plate Hole Pattern B
Inside Bolt Hole Spacing 3 in x 3 in
Standards ANSI ICWM, NSF Listed
Frame Material Steel
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Extended Lead No
Plate Thickness 5/32"
Caster Core Material Polyolefin
Caster Temp. Range -40 Degrees to 175 Degrees F
Caster Max. Temp. 175 Degrees F
Replacement Wheel IR04100106G
Thread Guards No
Caster Min. Temp. -40 Degrees F
Durometer 75 Shore A
Caster Plate Thickness 5/32"
Caster Wheel Bearings Ball
Includes Dust Cover
Caster Product Group Swivel Caster
Frame Finish Zinc Plated
Caster Temp. Range Available Yes
Caster Swivel Lock Type No Lock Included
Wheel Color Gray
Plate Caster Bolt Hole Pattern B
Caster Frame Material Steel
Item Debris-Resistant Long-Swivel-Life NSF-Listed Sanitary Plate Caster
Application Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Non-Marking Yes
Core Color Gray
Caster Brake Type No Brake Included
Includes Thread Guards Yes
Load Rating Range 0 to 299 lb
Swivel Construction Kingpin
Mounting Plate Bolt Hole Pattern B
Wheel Bearing Type Precision Ball
Wheel/Tread Hardness 75 Shore A
Wheel Core Material Plastic
Wheel/Tread Hardness Rating Soft
Swivel Lock Type No Lock Included
Number of Mounting Holes 4
Tread Shape Standard
Swivel Raceway Type Double Ball
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Color Gray

Description

Swivel, Debris-Resistant Long-Swivel-Life NSF-Listed Sanitary Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
