  6. Swivel NSF-Listed Plate Caster, TPR, 3 in., 210 lb.

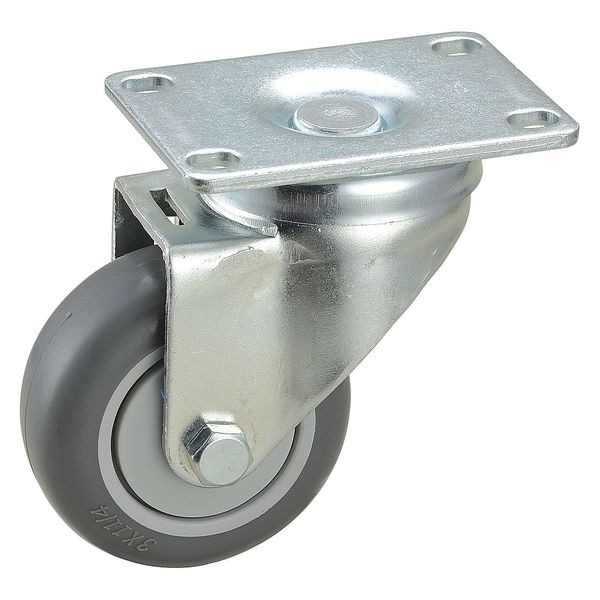

Zoro Select Swivel NSF-Listed Plate Caster, TPR, 3 in., 210 lb. 2G053 - main

Swivel NSF-Listed Plate Caster, TPR, 3 in., 210 lb.

  • Mfr # 2G053

  • Zoro # G3349647

product price:  $8.65
/ea

Key Features

Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Thread Guards
No
Includes
Thread guards
Caster Brake Included
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2G053
Zoro #
G3349647
UPC #
190735900154
Country of Origin
China

Dimensions

Overall Height
4-1/4in
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Wheel Dia.
3 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Height
4 1/4 in
Mounting Plate Thickness
1/8in

Details

Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Thread Guards
No
Includes
Thread guards
Caster Brake Included
No
Non-Marking
Yes
Caster Sub-Type
Swivel
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Caster Frame Material
Steel
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Load Rating
210 lb
Number of Wheels
1
Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Wheel Color
Gray
Core Color
Gray
Caster Plate Hole Pattern
C
Item
Plate Caster
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Includes Thread Guards
Yes
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Ball
Wheel Core Material
Polyolefin
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity - Maximum
210 lb
Wheel Hardness Rating
88 Shore A
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-30 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 210 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
