  6. Swivel NSF-Listed Plate Cstr w/Brke, 300 lb., Plain

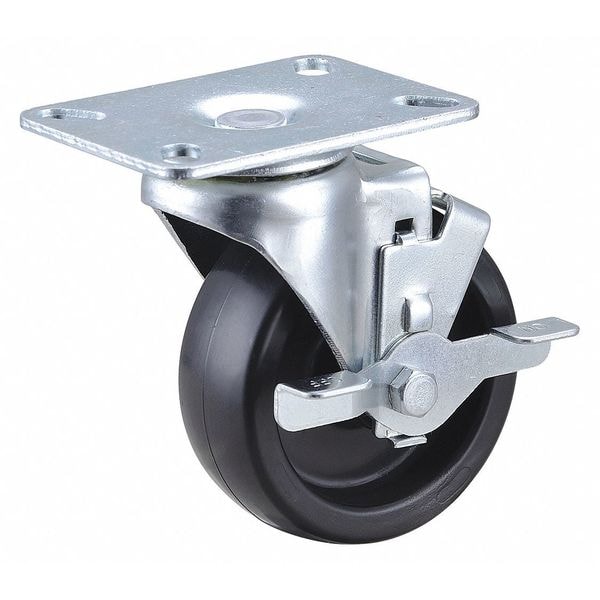

Zoro Select Swivel NSF-Listed Plate Cstr w/Brke, 300 lb., Plain 33J015 - main

Swivel NSF-Listed Plate Cstr w/Brke, 300 lb., Plain

  • Mfr # 33J015

  • Zoro # G4807686

product price:  $9.95
/ea

Key Features

Wheel Width
1 1/2 in
Standards
ANSI, ANSI ICWM, NSF
Caster Brake Included
Yes
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/8in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
33J015
Zoro #
G4807686
UPC #
190735901212
Country of Origin
China

Dimensions

Wheel Width
1 1/2 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/8in
Stem Dia.
No Stem
Wheel Dia.
4 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Height
5 1/8 in
Mounting Plate Thickness
5/32in

Details

Standards
ANSI, ANSI ICWM, NSF
Caster Brake Included
Yes
Extended Lead
No
Caster Plate Hole Pattern
A
Number of Wheels
1
Frame Finish
Zinc Plated
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Non-Marking
Yes
Item
Plate Caster
Replacement Wheel
IB0404106G
Load Rating
300 lb
Caster Brake Type
Side Brake
Core Color
Black
Wheel Color
Black
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Swivel Raceway Type
Double Ball
Load Rating Range
300 to 999 lb
Tread Shape
Standard
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel/Tread Material
Polyolefin
Wheel/Tread Color
Black
Load Capacity - Maximum
300 lb
Wheel Hardness Rating
65 Shore D
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
