Shop ZORO SELECT

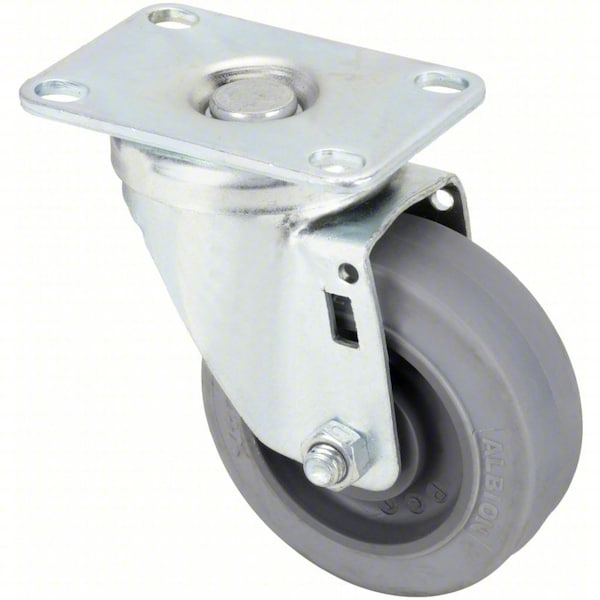

Swivel Plate Caster, 200 lb., Zinc Plated

  • Mfr # P12KS-PRP030K-12

  • Zoro # G2389256

product price:
$
13.89
/ea

Key Features

Swivel Radius
2 13/16 in
Number of Wheels
1
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Frame Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12KS-PRP030K-12
Zoro #
G2389256
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
2 13/16 in
Stem Dia.
No Stem
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Overall Height
4-1/4"
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
4 3/16 in
Inside Slot Spacing - Width
1.75 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Outside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Thickness
5/32 in
Mounting Plate Length
2 1/2 in

Details

Number of Wheels
1
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Frame Finish
Zinc Plated
Thread Guards
Yes
Includes
Thread Guards
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Standards
ANSI ICWM
Extended Lead
No
Features
Floor Protection, Noise Reduction
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Wheel Color
Gray
Caster Frame Material
Steel
Item
Plate Caster
Core Color
Beige
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. XS0303106G
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Load Rating
200 lb
Non-Marking
Yes
Caster Brake Type
No Brake
System of Measurement
Inch
Tread
Standard
Tread Color
Gray
Caster Mounting Type
Plate
Operating Temperature Range
-40 Degrees to 180 Degrees F
Load Rating Range
Light-Duty
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Construction
Kingpin
Tread Shape
Standard
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
200 lb
Series
P12K Series
Compatible With
XS0303106G
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
200 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
